What Are Furnace Fans and Impellers?
A furnace fan is a high-temperature air-circulation component used to move heated gases throughout a heat treatment furnace or other industrial furnace system. The furnace impeller rotates inside the furnace or circulation chamber, distributing heat and process atmosphere more evenly around the workpieces. Proper airflow helps reduce temperature differences, improve heating consistency and support stable carburizing, annealing, hardening, tempering and solution-treatment processes.

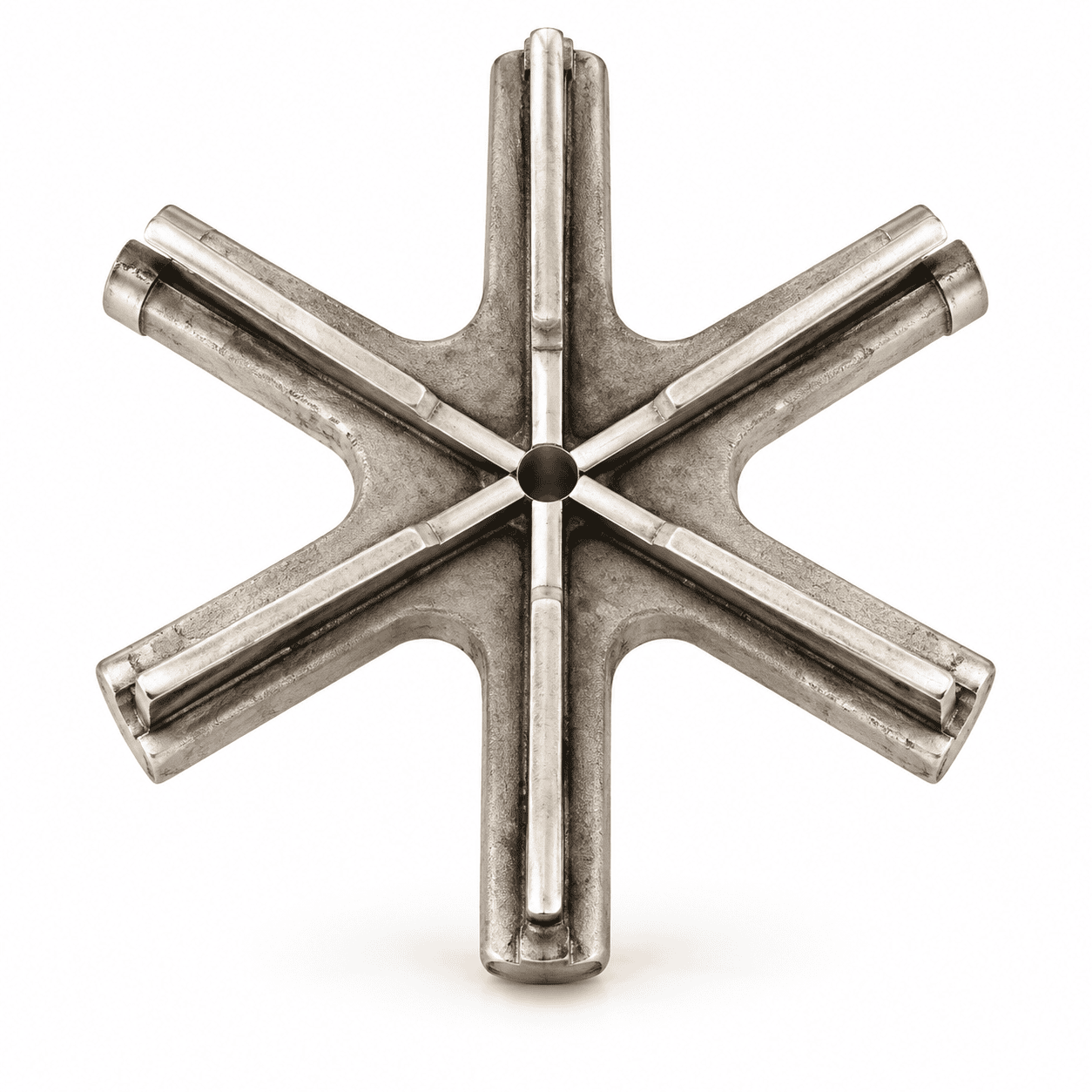

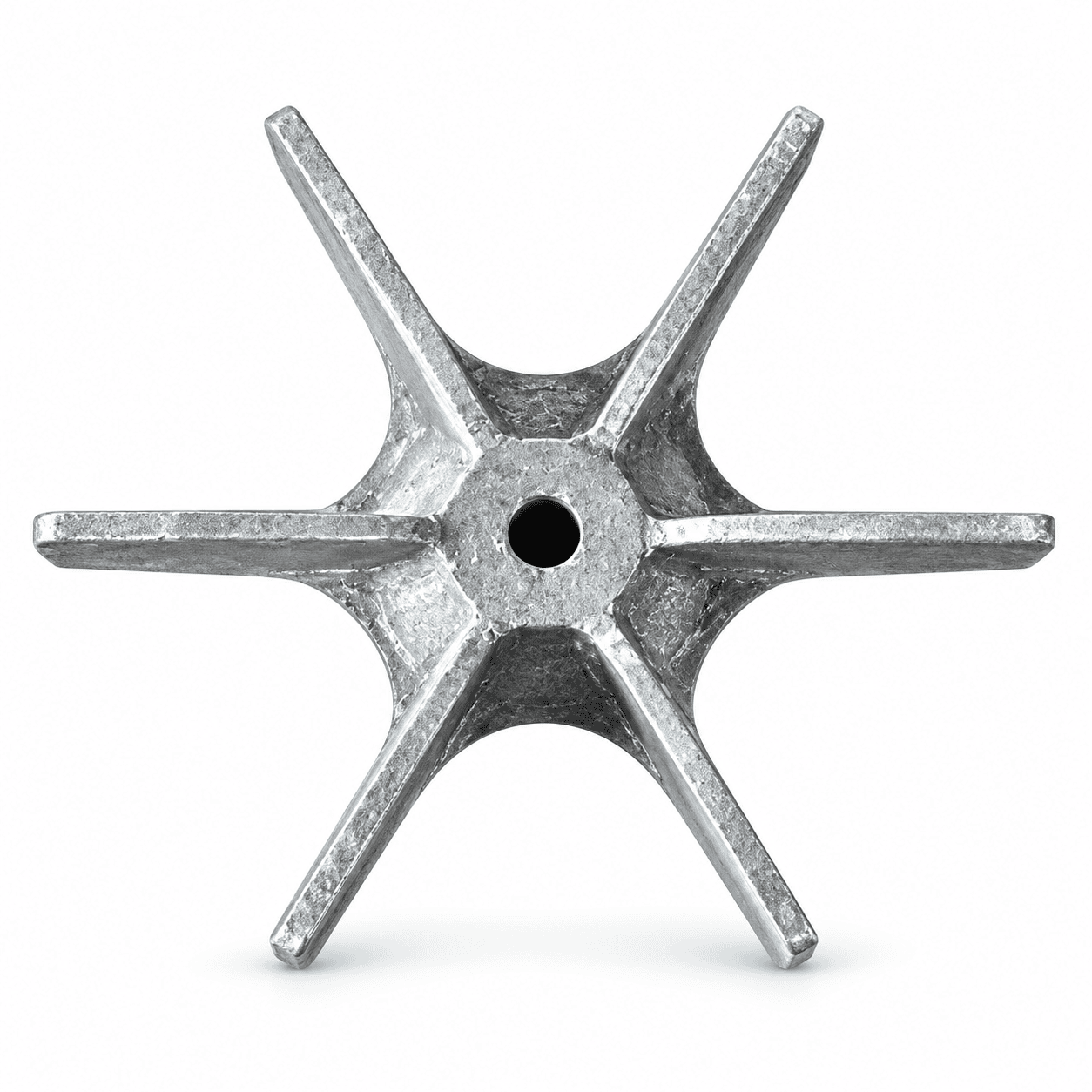

High-temperature furnace fans include impellers, hubs, shafts and other components whose requirements depend on the assembly and duty. Furnace impellers and circulation fans should be reviewed from drawings and operating inputs; a complete fan assembly must not be described as if every component uses one casting process.
Cast Components Within a Furnace-Fan Assembly
Some impeller, hub or support geometries may merit casting-route review, while shafts, fabricated elements and finished assemblies require their own manufacturing decisions. The investment-cast component categories are a reference for applicable cast parts, not a claim that the complete fan assembly is investment cast.
ECOOSUN manufactures custom furnace fans, furnace impellers, high-temperature circulation fans and shaft assemblies from suitable heat-resistant alloys. Each component is engineered according to furnace dimensions, operating temperature, atmosphere, rotation speed, airflow requirements and installation interfaces. Our product range includes axial furnace fans, centrifugal fan impellers, multi-blade circulation impellers and replacement heat treatment furnace parts produced from customer drawings or existing samples. Material selection, blade geometry, dynamic balance and dimensional inspection are carefully controlled to reduce vibration, resist high-temperature deformation and provide reliable service in demanding furnace environments.
For furnace fan and impeller selection, ECOOSUN reviews furnace temperature, atmosphere, airflow, rotation speed, balance, thermal cycling and impeller geometry. Common heat-resistant grades include EN 1.4852 / 25Cr-35Ni-Nb for approximately 1,100–1,150°C service, EN 1.4851 / X15CrNiSi25-21 for approximately 900–1,000°C, EN 1.4845 / 25Cr-20Ni for approximately 900–1,000°C, EN 1.4857 / 25Cr-35Ni / HP40 for approximately 1,050–1,150°C, and HU / ZG45Ni38Cr18Si2 for approximately 1,093°C. Final material selection is confirmed against the drawing, airflow requirements and duty cycle. Send your fan or impeller drawing, sample or operating data for a quotation.

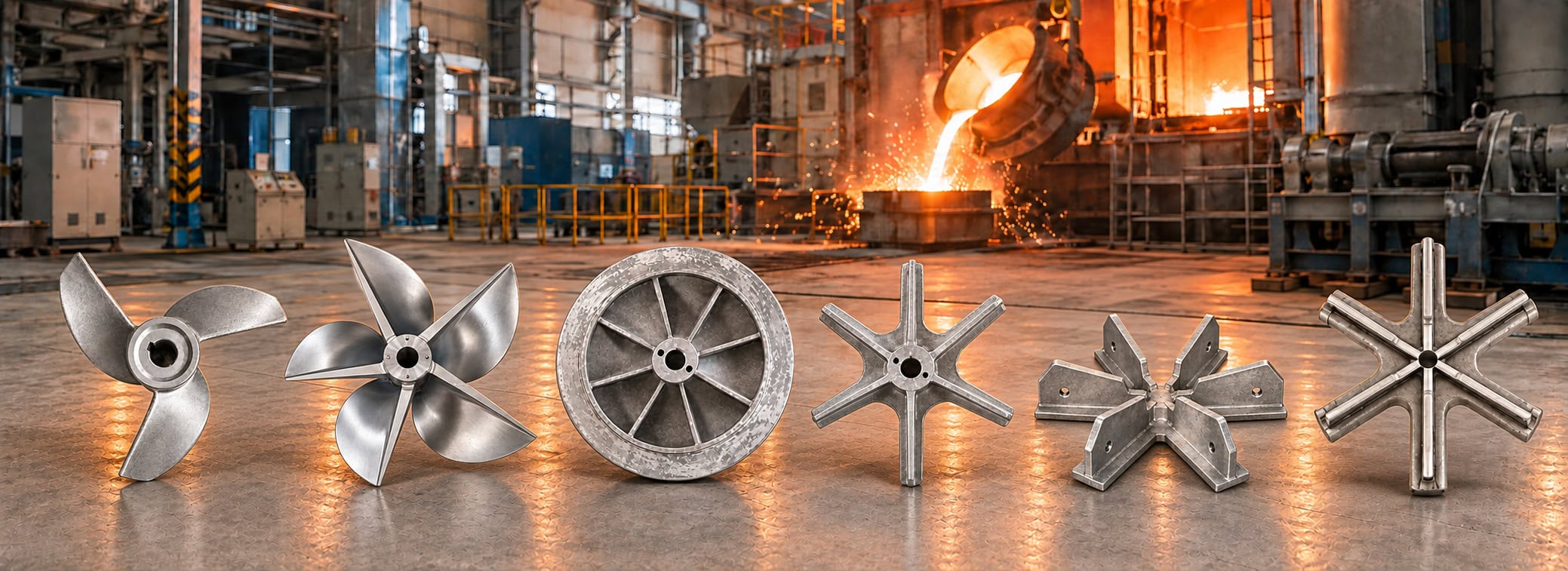

Custom Furnace Fans & Impellers
Explore our custom furnace fans, furnace impellers, high temperature fans and circulation fan assemblies engineered for reliable airflow inside demanding heat treatment furnace systems. Each product is manufactured according to customer drawings, furnace dimensions, operating temperature, atmosphere, rotational speed and required airflow performance.

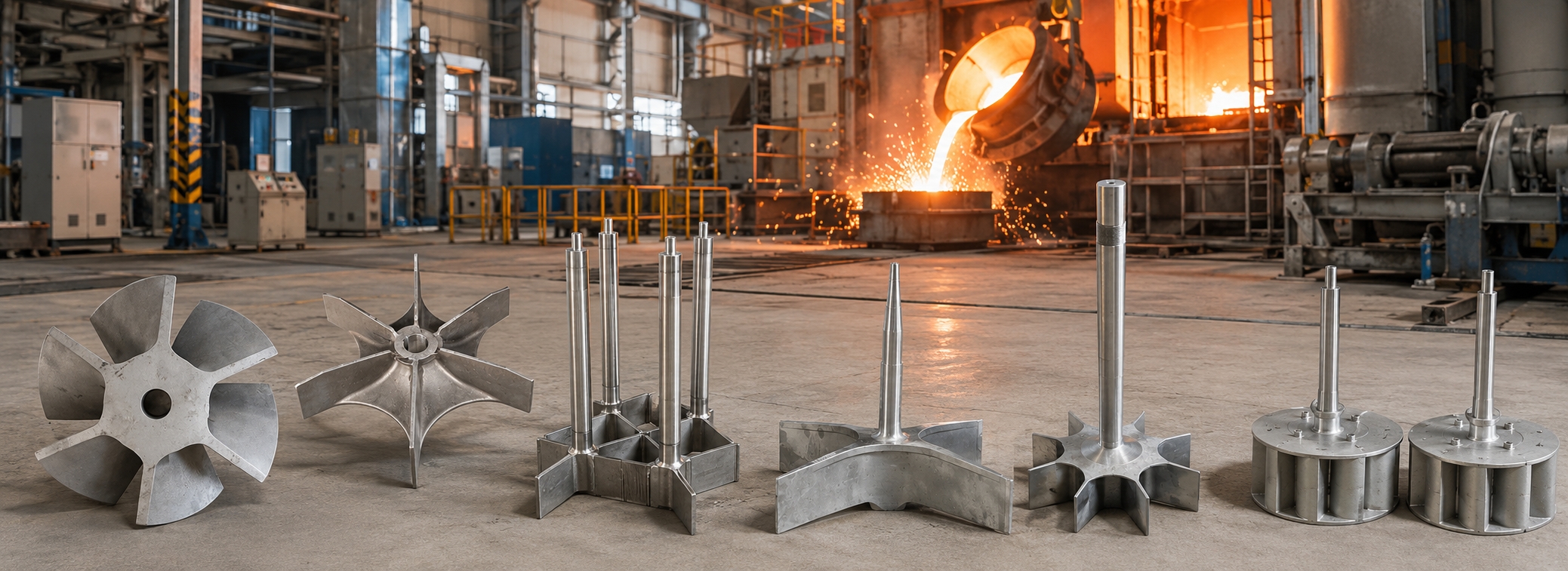

ECOOSUN supplies axial fan impellers, centrifugal furnace impellers, multi-blade circulation fans and shaft-mounted fan assemblies made from suitable heat-resistant alloys. OEM manufacturing, material selection, blade-structure optimization and replacement-part development are available for industrial furnaces requiring improved temperature uniformity, reduced vibration and dependable high-temperature operation.

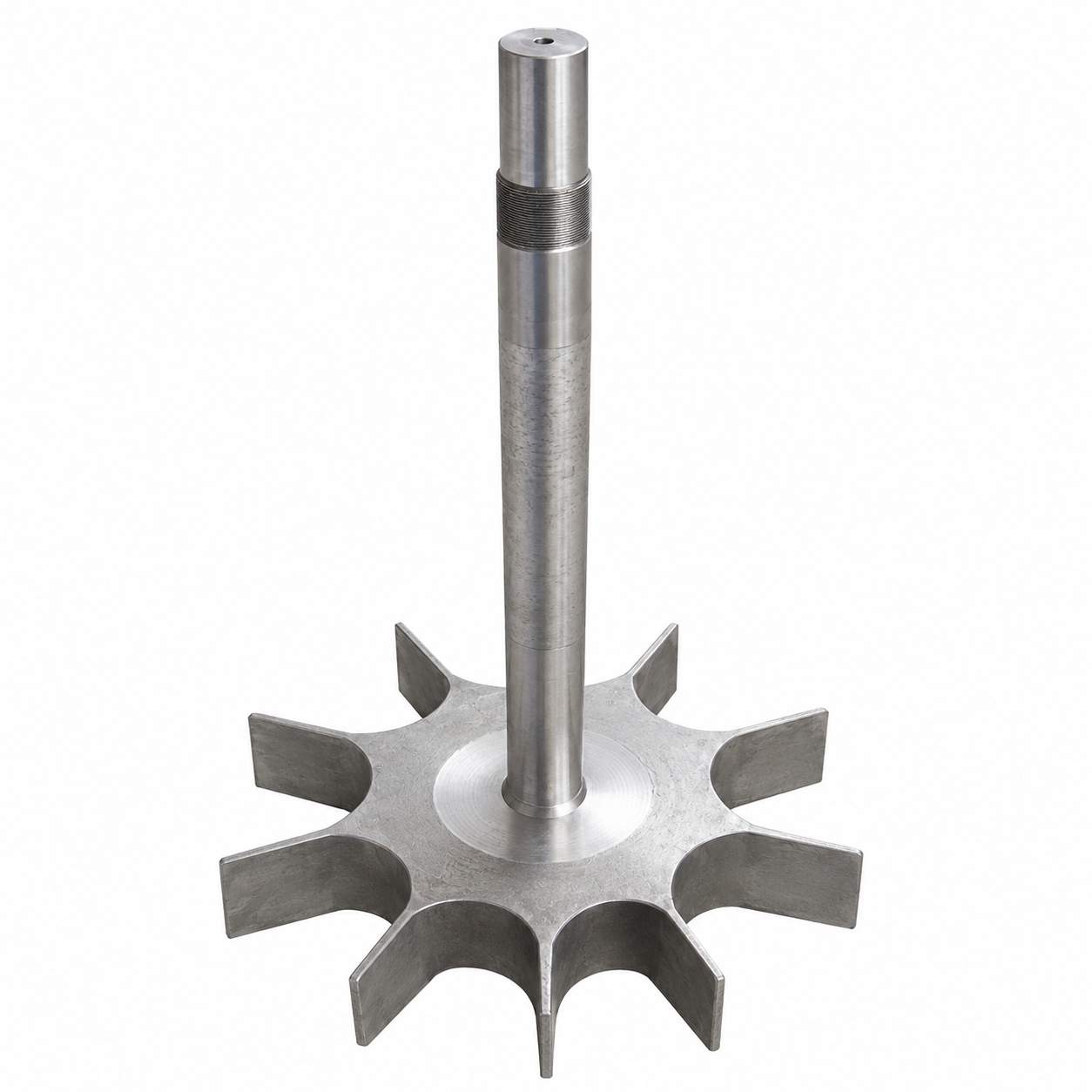

Custom Furnace Fan engineered for reliable air circulation and uniform temperature distribution in heat treatment furnace systems.

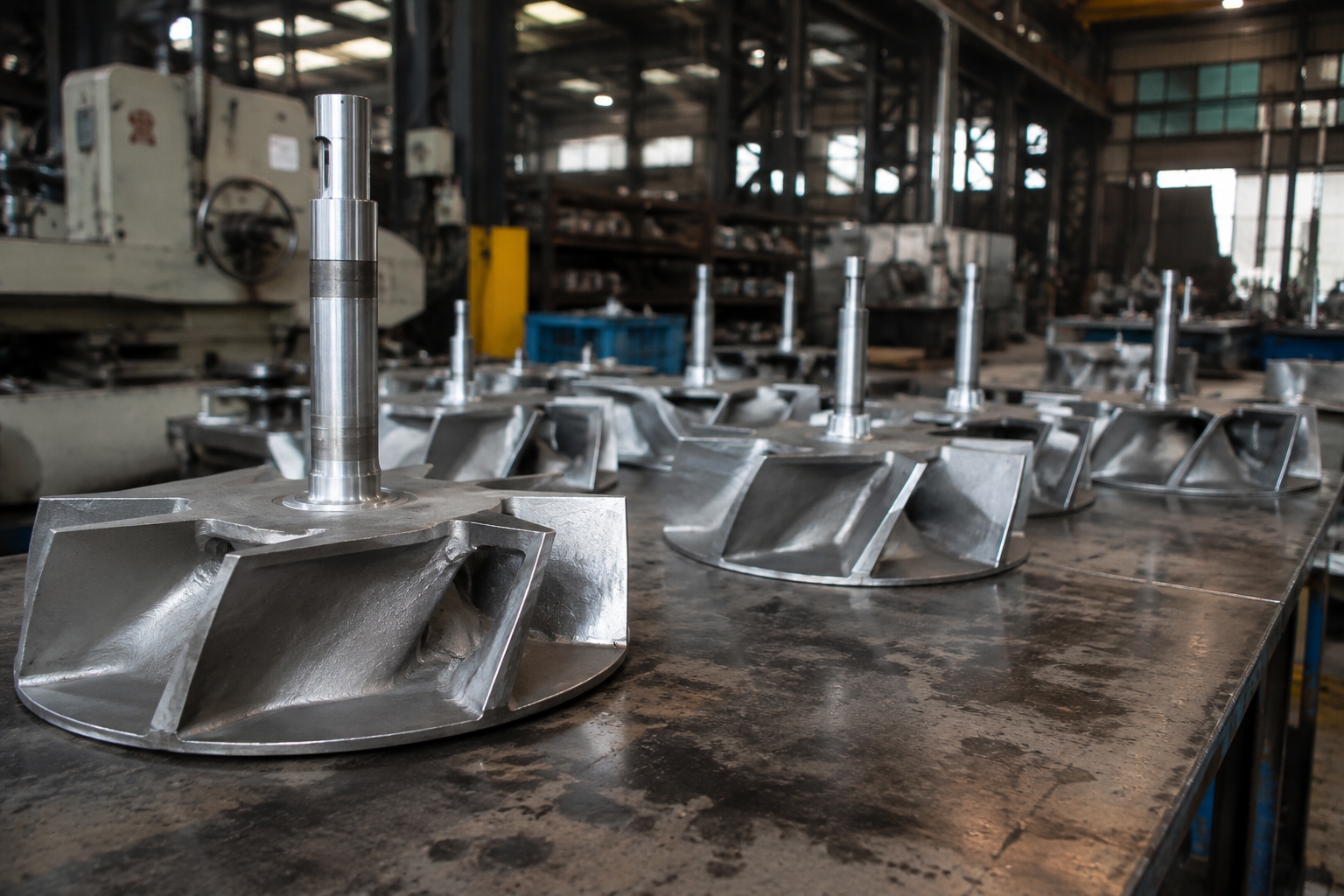

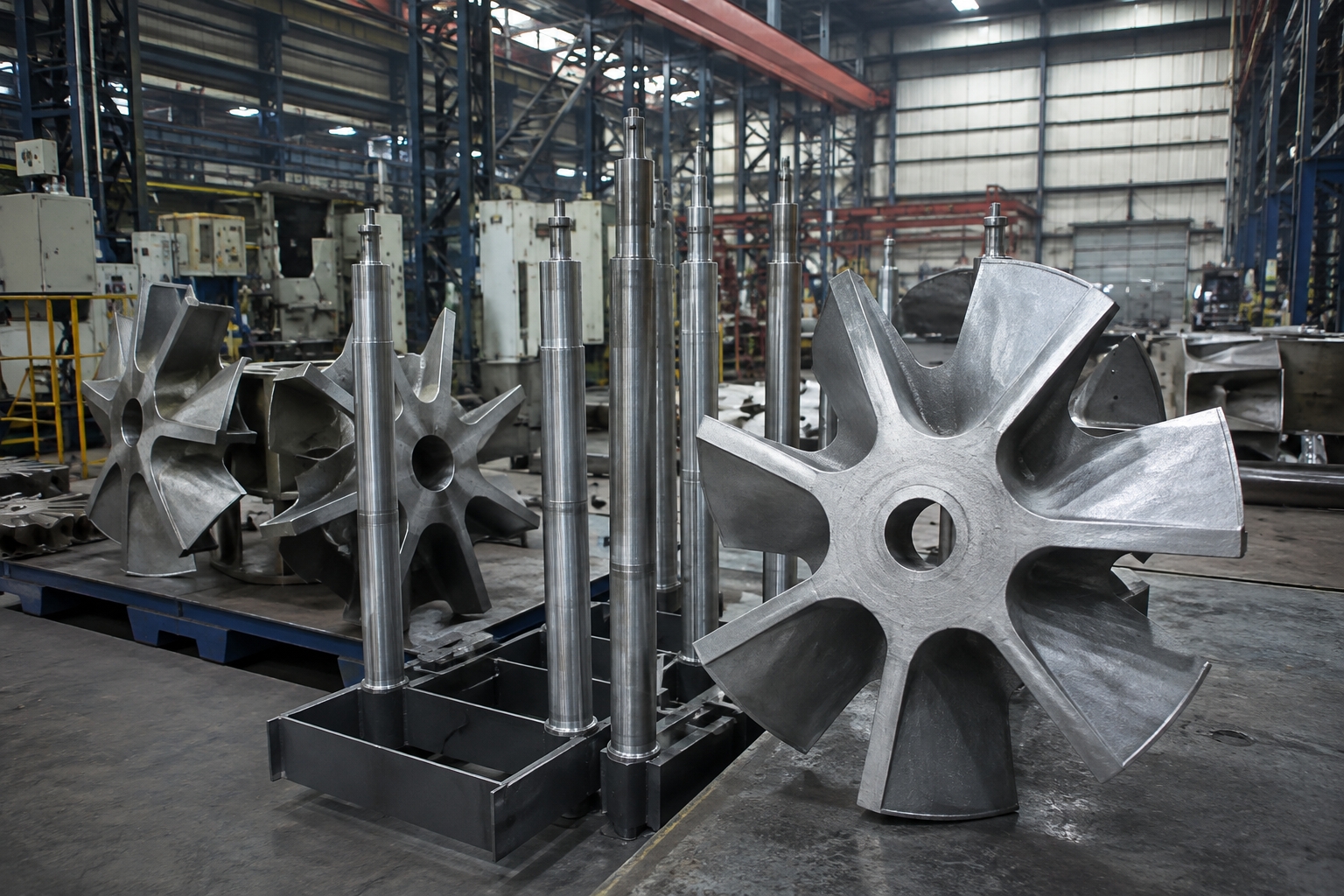

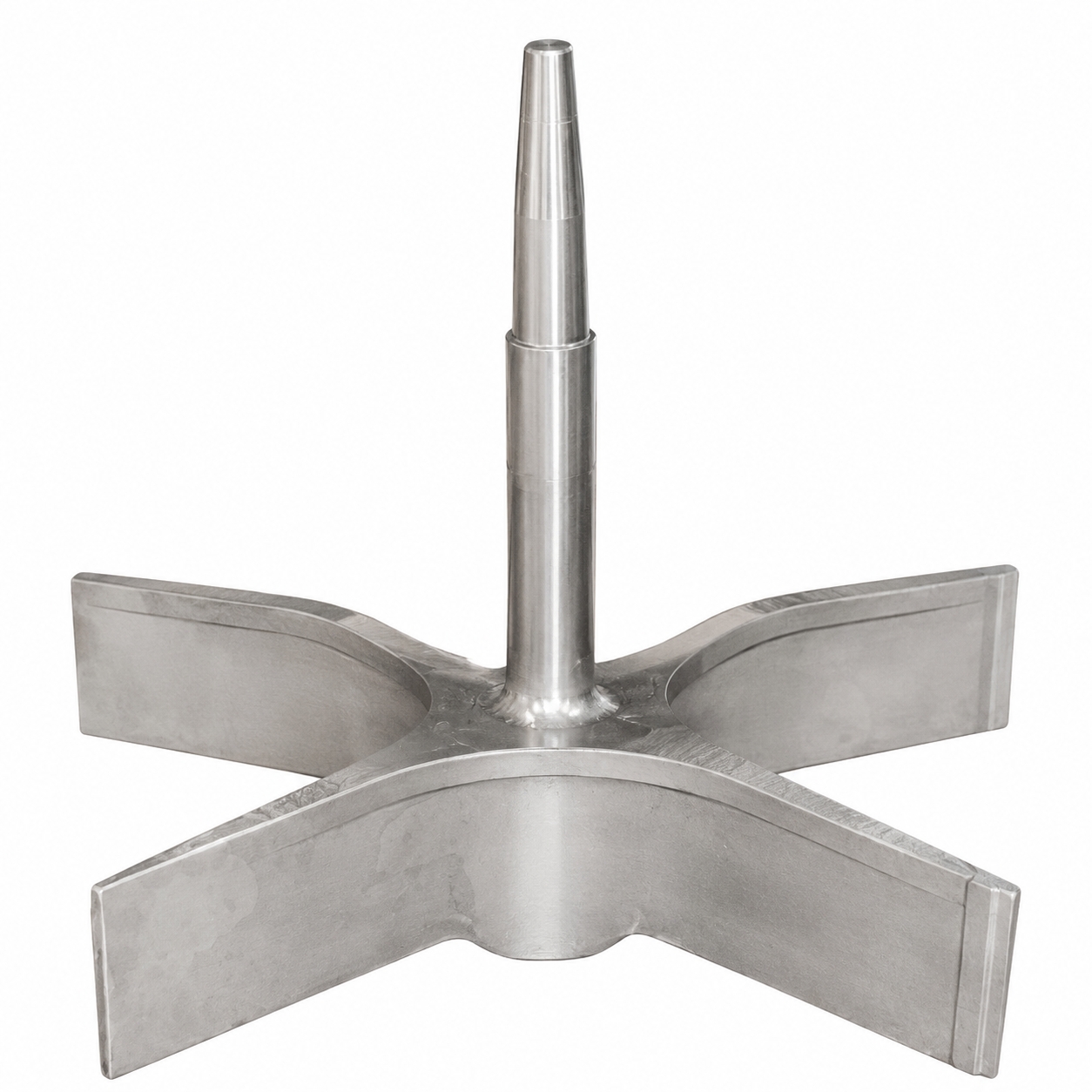

Heavy-duty Furnace Impeller manufactured from heat resistant alloy for continuous high-temperature industrial furnace operation.

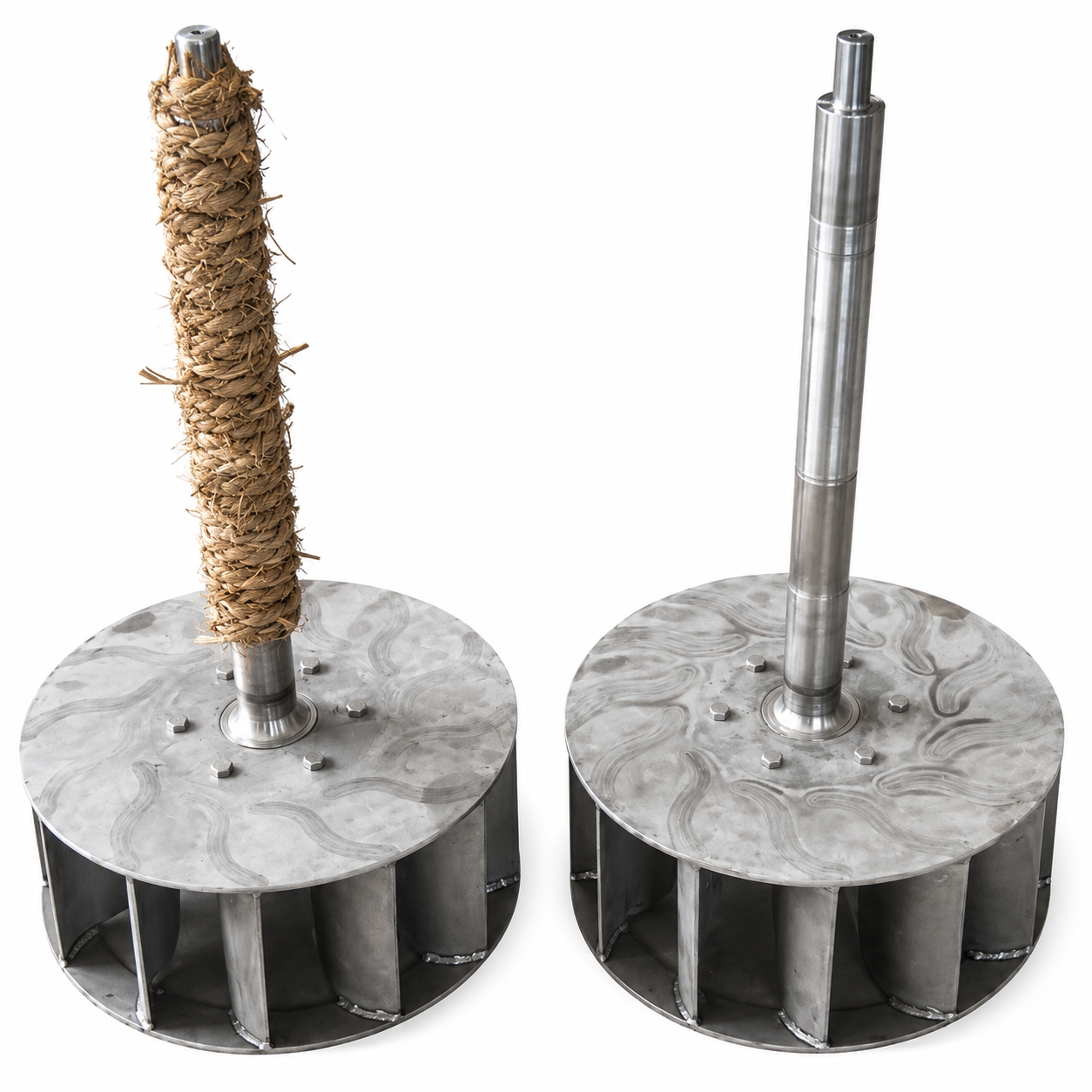

High Temperature Fan designed to withstand thermal fatigue, oxidation and long-term service in demanding furnace environments.
Custom Furnace Fan and Impeller manufactured to customer drawings for precise balance, airflow performance and accurate installation.
Industrial Circulation Fan optimized to improve furnace atmosphere uniformity, heat transfer efficiency and production consistency.
Heat Resistant Furnace Fan engineered for carburizing, annealing, hardening, tempering and other heat treatment processes.
Fan and Impeller Data Needed for Replacement
An industrial furnace fan or impeller must match the shaft interface, rotation, speed, gas path and operating environment. A photo or outside diameter alone is not enough for a reliable replacement review. Send the available drawing or used component together with the operating data below so ECOOSUN can confirm the manufacturable geometry, material route, machining scope and inspection requirements.
| Information to provide | Review focus |
|---|---|
| Impeller outside diameter and overall width | Furnace envelope and flow-path fit |
| Blade count, blade profile and blade angle | Reproduction of the existing geometry |
| Shaft bore, hub, keyway, taper or coupling details | Drive and installation interface |
| Direction of rotation viewed from the drive side | Prevents a reversed replacement configuration |
| Normal and maximum rotational speed | Structural and balance review input |
| Operating temperature and furnace atmosphere | Material and process selection input |
| Gas composition, dust or scale exposure if known | Surface and service-condition review |
| Existing vibration, cracking, wear or deformation | Defines the failure evidence to examine |
| Required balancing standard/report and dimensional records | Confirms the acceptance scope before quotation |
Manufacturing and Inspection Scope
The appropriate manufacturing route depends on the impeller geometry, alloy, quantity and service conditions. Casting, machining, fabrication or a combined route should not be assumed before the drawing is reviewed. Critical interfaces such as the hub, bore, keyway and mounting faces should be identified on the approved drawing.
If static or dynamic balancing, dimensional reports, material verification or non-destructive testing is required, specify the applicable requirement in the RFQ. ECOOSUN will confirm the available process and documentation for the project before accepting it as part of the quotation.
Send the fan or impeller drawing, drive-side rotation, speed, temperature and shaft-interface details.
Get to know ECOOSUN and the team behind our heat-resistant castings. We help customers turn application requirements into practical casting solutions for heat treatment and other high-temperature environments.
Every project starts with understanding your operating conditions. From alloy selection to casting production, our team works with you to balance durability, performance, and cost. Whether you need standard components or custom castings, share your drawings and requirements with us to discuss a solution suited to your application.
Hi, I’m Jonny, and I lead ECOOSUN’s international sales team. I’m here to help you find the right heat-resistant casting solution for your application. Whether you have detailed drawings or an initial idea, we can discuss your requirements and offer free design support.
You’ll work directly with me and our factory team throughout the process. Share your dimensions, operating conditions, and project priorities so we can help you explore suitable options. From your first inquiry to production planning, we focus on clear communication and practical support to help you move your project forward.
A failed Furnace Fan or damaged Furnace Impeller can reduce airflow efficiency, create uneven furnace temperatures and interrupt production. ECOOSUN provides rapid manufacturing of replacement High Temperature Fans, Circulation Fans and custom furnace fan assemblies to help customers minimize downtime and restore normal Heat Treatment Furnace operation as quickly as possible.
Whether you require emergency replacement, scheduled maintenance or reverse engineering from worn components, our engineering team delivers custom Furnace Fans directly from customer drawings, samples or existing assemblies. With responsive production, strict quality control and reliable global delivery, we help industrial furnace operators maintain stable airflow, reduce maintenance costs and extend equipment service life.
ECOOSUN is more than a manufacturer of Furnace Fans and Furnace Impellers. We work closely with Heat Treatment Furnace manufacturers, commercial heat treaters, furnace maintenance companies and industrial equipment builders to develop reliable high-temperature air circulation solutions for demanding thermal processing applications.
From heat-resistant alloy selection and casting technology to precision machining, dynamic balancing and final inspection, we provide complete manufacturing support for High Temperature Fans, Circulation Fans, custom impellers and replacement furnace components. Our engineering team focuses on improving airflow efficiency, extending service life and ensuring every project delivers dependable performance throughout the entire furnace operating cycle.
Join Jonny in our workshop for a closer look at the wax patterns behind our castings. Discover how attention to shape and detail begins long before the finished heat-resistant component takes form.
Join Jonny in ECOOSUN’s workshop to explore a variety of semi-finished heat-resistant castings. From baskets and trays to other furnace components, see the different shapes and designs taking form before final finishing.
A furnace fan is a high-temperature circulation component used to move heated gases and process atmosphere throughout a heat treatment furnace. The rotating furnace impeller creates controlled airflow around the workpieces, helping reduce temperature differences and improve heating consistency.
Unlike a general ventilation fan, a high temperature fan must withstand thermal cycling, oxidation, mechanical stress and prolonged exposure to furnace atmospheres. Proper fan selection can improve temperature uniformity, shorten heating time and support more stable carburizing, annealing, hardening, tempering and solution-treatment processes.
A furnace fan generally refers to the complete air-circulation assembly, which may include the impeller, shaft, hub, bearings, mounting structure and drive connection. A furnace impeller is the rotating bladed component that actually moves the furnace atmosphere.
For replacement projects, customers may require only the furnace impeller, or they may need a complete fan-and-shaft assembly. ECOOSUN manufactures individual impellers, shafts, hubs and complete furnace fan assemblies according to customer drawings, samples and operating requirements.
Furnace fans and furnace impellers are used in many batch and continuous industrial furnace systems where controlled atmosphere circulation and temperature uniformity are important.
Typical applications include:
- Carburizing furnaces
- Annealing furnaces
- Tempering furnaces
- Solution heat treatment furnaces
- Aluminum heat treatment furnaces
- Bogie hearth furnaces
- Pit furnaces
- Batch furnaces
- Continuous heat treatment lines
The required circulation fan design depends on furnace geometry, operating temperature, atmosphere composition, airflow direction and process objectives.
Selecting the correct furnace fan requires more than matching the outside diameter. Engineers should evaluate furnace temperature, atmosphere, required airflow, pressure, rotational speed, installation direction, available space and workpiece loading pattern.
The furnace impeller diameter, blade number, blade angle, hub design and shaft connection all influence circulation performance. Material selection must also match the operating environment. ECOOSUN reviews these parameters to develop a high temperature fan suitable for the customer’s specific heat treatment furnace rather than supplying a generic design.
There is no single heat resistant alloy suitable for every furnace application. The correct material depends on operating temperature, furnace atmosphere, rotational speed, thermal cycling and expected service life.
A carburizing furnace may require stronger resistance to carbon attack, while an oxidizing atmosphere may require improved oxidation resistance. High-speed furnace impellers also require adequate creep strength and structural stability.
ECOOSUN recommends suitable heat-resistant cast steel or alloy grades based on actual service conditions, helping customers balance durability, performance and replacement cost.
An axial furnace fan moves gas mainly parallel to the shaft. It is commonly used where large-volume circulation and relatively low pressure are required. A centrifugal furnace impeller moves gas outward from the center and is generally selected when higher pressure or a different airflow path is needed.
The correct design depends on the furnace chamber, duct arrangement, airflow resistance and temperature-uniformity target. Both axial and centrifugal high temperature fan designs can be customized according to the customer’s industrial furnace layout and process requirements.
Yes. ECOOSUN manufactures custom furnace impellers, shafts and complete fan assemblies from 2D drawings, 3D models, original specifications or physical samples.
When complete drawings are unavailable, worn replacement furnace components can be measured and reverse engineered. Our team reviews critical dimensions such as impeller diameter, blade geometry, hub bore, shaft interface, rotation direction and installation height before production.
This service is suitable for furnace manufacturers, heat treatment plants and maintenance companies that need compatible replacements for existing equipment.
To prepare an accurate quotation for a custom furnace fan or furnace impeller, customers should provide as much of the following information as possible:
- Product drawing or sample
- Impeller diameter and height
- Shaft dimensions and connection method
- Blade quantity and rotation direction
- Operating temperature
- Furnace atmosphere
- Rotational speed
- Required airflow or pressure
- Material specification
- Order quantity
For replacement projects, photos of the existing assembly and information about previous failure problems are also helpful.
Dynamic balancing is essential because an unbalanced furnace impeller can generate vibration, noise and excessive mechanical loads during rotation. At high operating temperatures, these problems may accelerate shaft wear, bearing damage, cracking and deformation.
The impeller should be balanced after casting, machining and final assembly because each manufacturing stage can affect mass distribution. ECOOSUN performs dynamic balancing according to customer specifications and operating-speed requirements, helping each furnace fan achieve smoother rotation, more stable airflow and longer service life.
Common furnace fan and furnace impeller failure modes include:
- Blade cracking caused by thermal fatigue
- Oxidation and material loss
- Creep deformation at high temperature
- Shaft bending or wear
- Weld failure
- Hub cracking
- Imbalance and vibration
- Blade distortion caused by overheating
Failure is often related to unsuitable alloy selection, excessive rotational speed, poor balancing, incorrect installation or abnormal furnace conditions. Reviewing the failure mode before producing replacement components can help prevent the same problem from recurring.
The service life of a high temperature fan varies significantly depending on furnace temperature, atmosphere, rotational speed, thermal cycling, alloy grade and maintenance conditions. Therefore, a reliable lifespan cannot be stated from product dimensions alone.
A properly engineered circulation fan manufactured from the correct heat resistant alloy will generally provide better resistance to oxidation, deformation and thermal fatigue. Regular inspection of blades, hub, shaft and balance condition can also help identify damage before a sudden failure interrupts production.
Yes. ECOOSUN manufactures replacement furnace components for existing heat treatment and industrial furnace systems. Components can be reproduced from original drawings, worn samples or measured installation data.
Before production, we verify impeller dimensions, shaft interfaces, rotation direction, mounting position and operating conditions. The goal is to ensure the replacement furnace fan fits the existing equipment accurately, operates smoothly and requires minimal modification during installation.
Approved drawings and production records can be retained for faster repeat orders.
Quality control for furnace fans and furnace impellers may include:
- Chemical composition analysis
- Dimensional inspection
- Visual casting inspection
- Shaft and hub tolerance verification
- Blade-angle inspection
- Weld inspection, when applicable
- Static or dynamic balancing
- Surface and machining inspection
- Final assembly verification
Inspection requirements can be adjusted according to the customer’s drawing, operating speed and application. Material certificates, dimensional reports and dynamic balancing records can also be provided when required.
Effective furnace maintenance should include regular inspection of the impeller blades, hub, shaft, welds, bearings and mounting system. Engineers should look for oxidation, cracks, distortion, abnormal vibration and changes in motor load or airflow.
Operating temperature, rotational speed and furnace atmosphere should also be monitored because abnormal conditions can shorten the service life of a circulation fan. Keeping critical replacement furnace components in stock can reduce downtime when a fan reaches the end of its service life.
ECOOSUN supplies custom furnace fans, furnace impellers, high temperature fans, shafts and complete circulation assemblies for demanding heat treatment furnace applications.
Our support covers:
- Heat resistant alloy selection
- Casting-process selection
- Custom manufacturing from drawings or samples
- Precision machining
- Dynamic balancing
- Dimensional and material inspection
- Replacement-part development
- Repeat-order production records
We work with furnace manufacturers, commercial heat treaters, maintenance companies and industrial users to provide reliable industrial furnace components with accurate fit, stable performance and responsive engineering support.
Question: Is a complete furnace fan made by one casting process?
Answer: Not necessarily. An assembly can combine cast, machined or fabricated components. The route and material for each component should be confirmed from its drawing and duty requirements.
Provide the drawing or sample, impeller diameter and width, blade count and direction, shaft and hub interfaces, rotational speed, furnace temperature and atmosphere, failure history, quantity and balancing or inspection requirements.
Furnace Fan and Impeller Replacement Resources
Use the fan and impeller material, failure and replacement guide to review service conditions. For a complete RFQ checklist, see how to prepare a furnace fan or impeller replacement inquiry.
For a quotation, send the drawing or sample, outside diameter, blade geometry, shaft interface, drive-side rotation, rotational speed, operating temperature, atmosphere, failure photographs, quantity and required inspection or balancing documents through Contact Us.
