What Is a Furnace Roll?
A furnace roll is a critical high-temperature component used to support and transport metal products inside roller hearth furnaces and other continuous industrial furnace systems. Unlike ordinary conveyor rollers, furnace rolls are designed to operate under extreme temperatures, thermal cycling and heavy loading conditions while maintaining stable rotation and dimensional accuracy.
A furnace roller must be reviewed as part of the roller-hearth line, including roll geometry, supported load, atmosphere, temperature range, rotation and thermal cycling. These inputs help define the questions for a roller-hearth furnace roll quotation without implying a standard material or performance result.

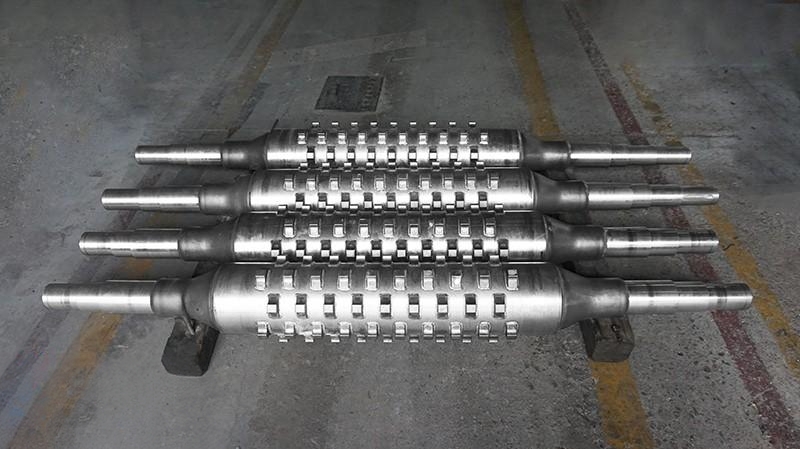

Reviewing Centrifugal Cast Rolls
The centrifugal process overview for cylindrical parts provides general context for centrifugal cast rolls and the drawing data needed for route evaluation. Final dimensions, material, machining and inspection requirements belong in the part-specific quotation.
Used in applications such as continuous annealing, heat treatment, brazing, sintering and metal processing lines, furnace rollers require excellent resistance to oxidation, creep deformation and thermal fatigue. Manufactured from advanced heat resistant alloy steel, high-quality furnace rolls provide reliable performance and long service life in demanding furnace environments.
ECOOSUN produces custom Furnace Rolls according to customer drawings, furnace structures and operating requirements. Our manufacturing capabilities include centrifugal casting, precision machining and surface processing, enabling us to supply durable centrifugal cast rolls and replacement heat treatment furnace parts for global industrial furnace applications.
For furnace roll selection, ECOOSUN reviews furnace temperature, load, rotation speed, atmosphere, thermal cycling and roll geometry. Common heat-resistant grades include EN 1.4852 / 25Cr-35Ni-Nb for approximately 1,100–1,150°C service, EN 1.4851 / X15CrNiSi25-21 for approximately 900–1,000°C, EN 1.4845 / 25Cr-20Ni for approximately 900–1,000°C, EN 1.4857 / 25Cr-35Ni / HP40 for approximately 1,050–1,150°C, and HU / ZG45Ni38Cr18Si2 for approximately 1,093°C. Final material selection is confirmed against the drawing, operating conditions and duty cycle. Send your roll drawing, sample or operating data for a quotation.

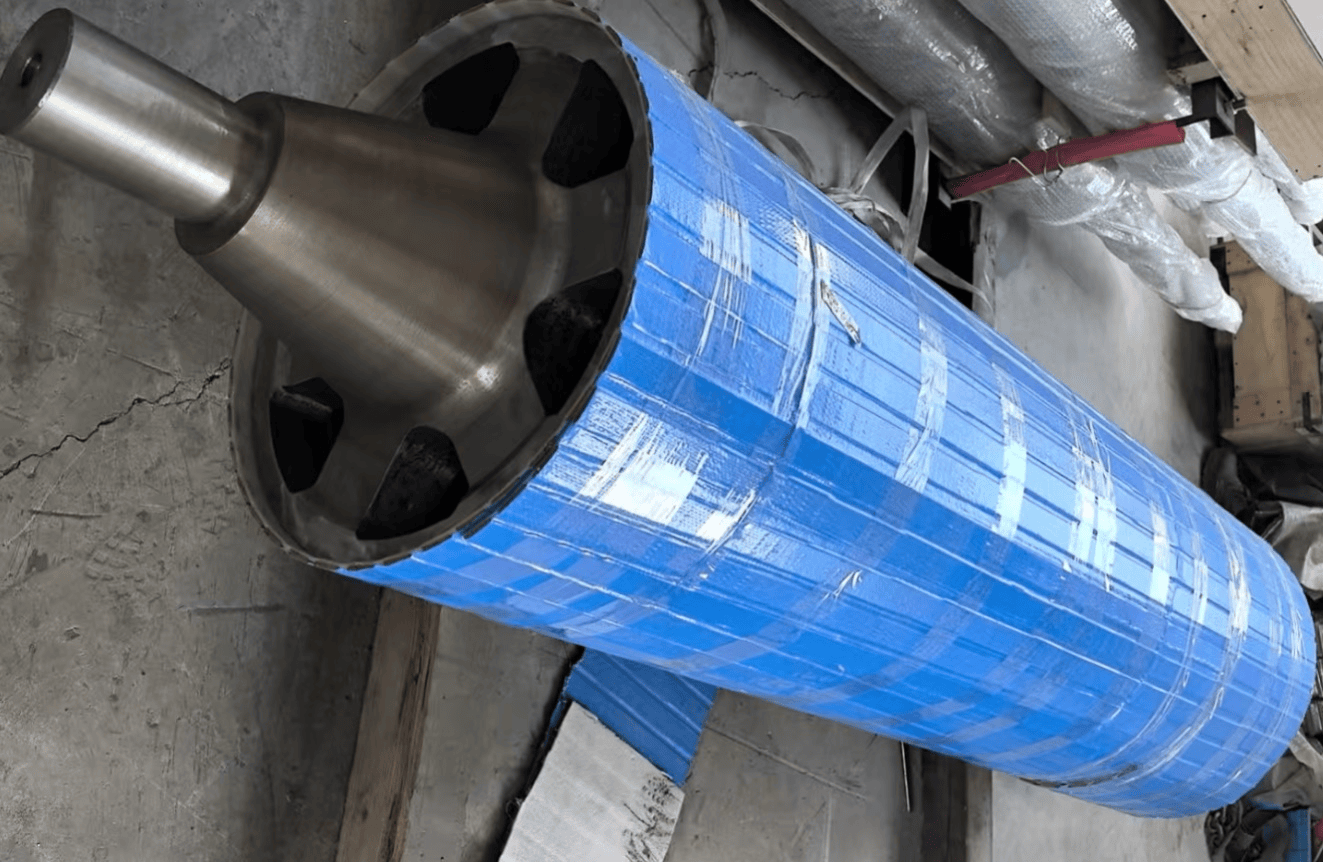

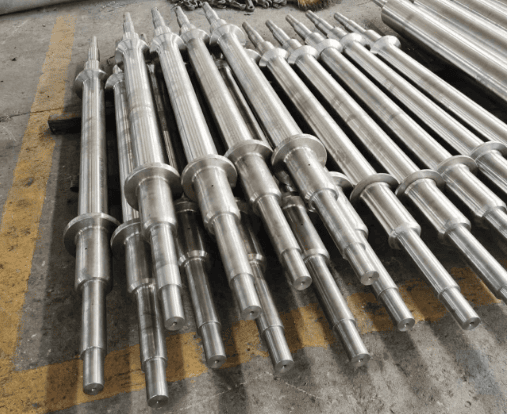

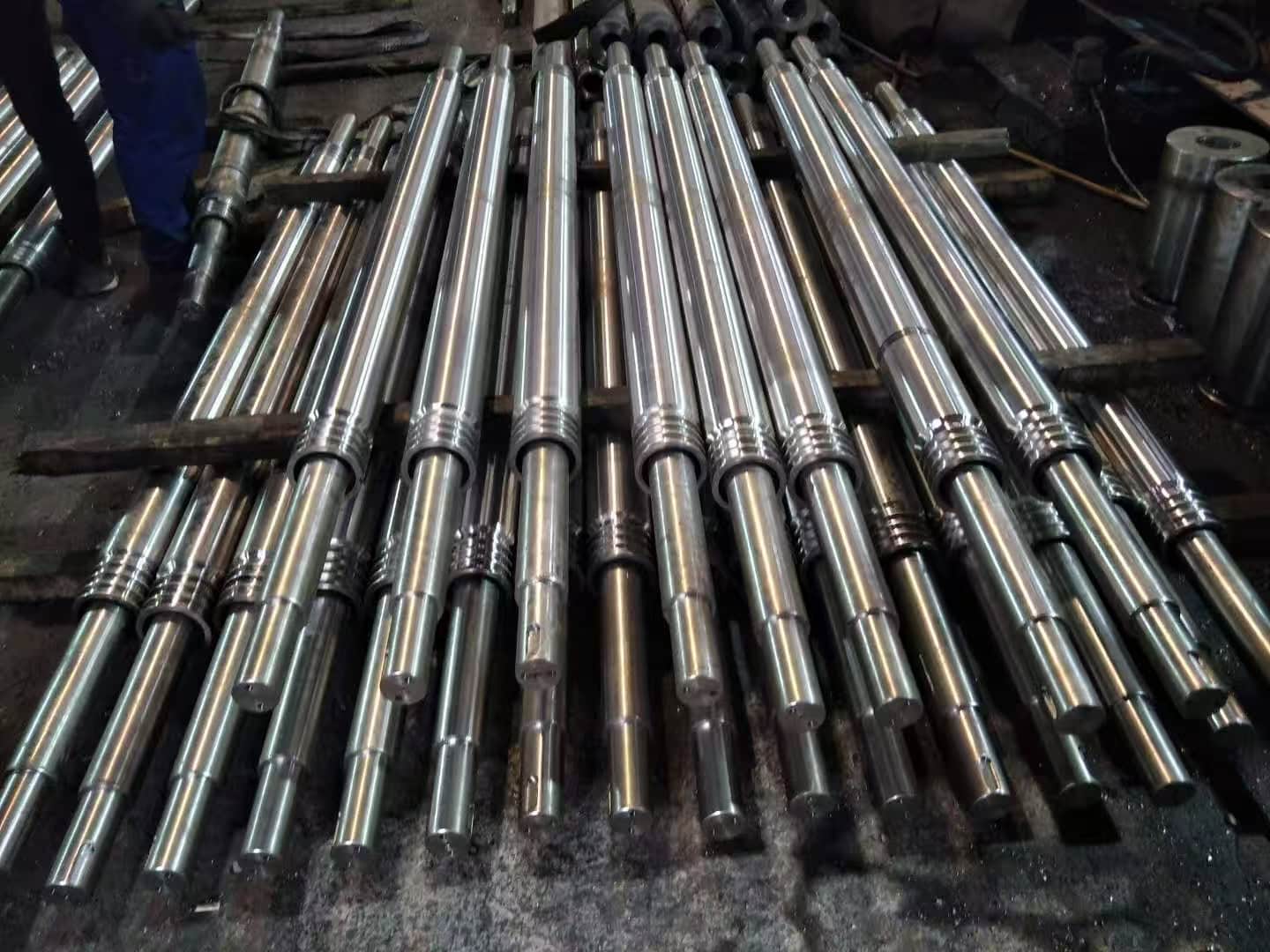

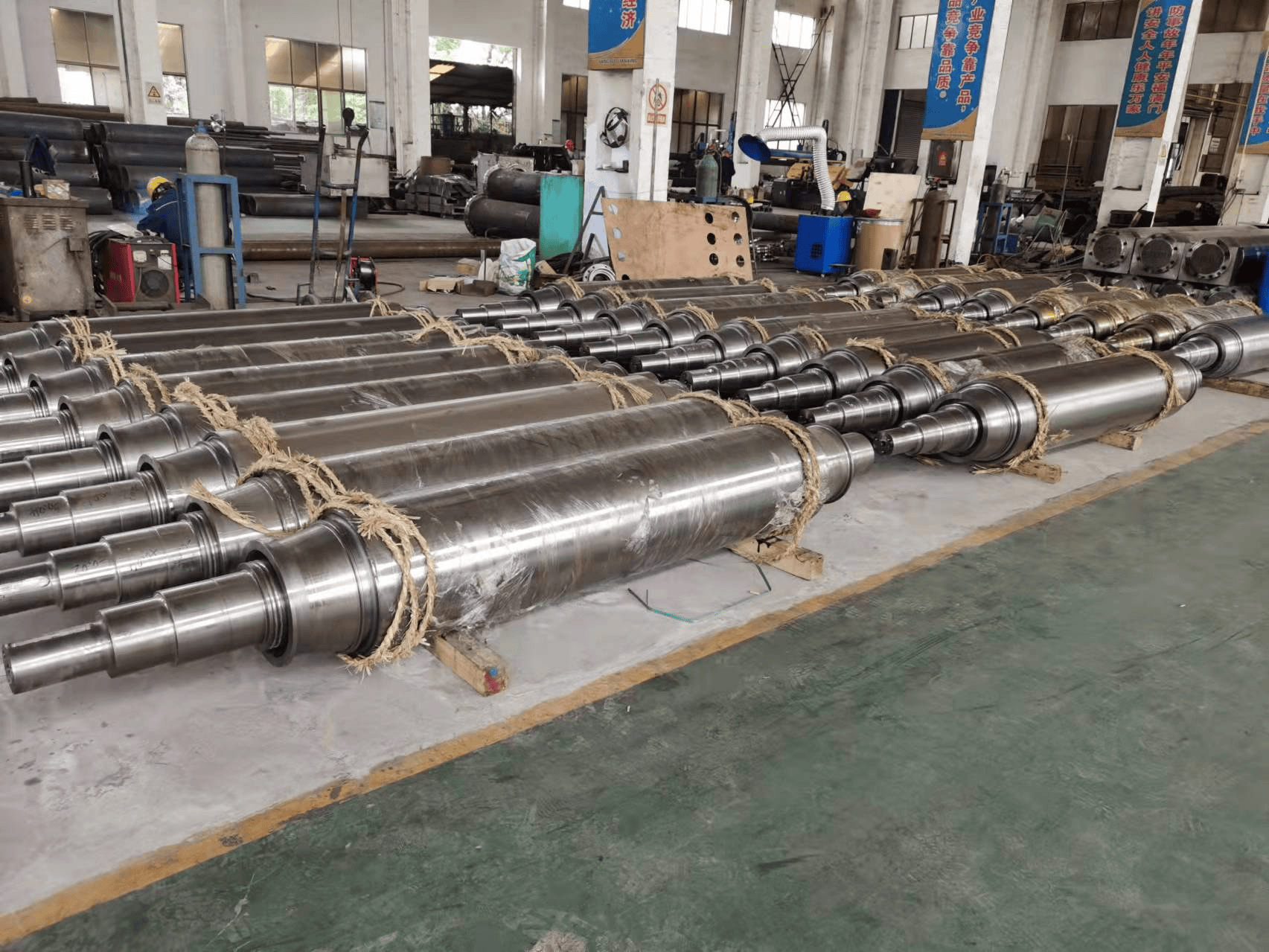

Custom Furnace Rolls for Roller Hearth Furnaces
ECOOSUN manufactures a complete range of custom furnace rolls for roller hearth furnaces, continuous heat treatment equipment and other high-temperature industrial furnace applications. Our product portfolio includes furnace rollers, centrifugal cast rolls, heat resistant alloy rolls and specially engineered roller assemblies designed for different production conditions.
Each furnace roll is manufactured based on customer drawings, furnace dimensions, operating temperature, atmosphere conditions and load requirements. By selecting suitable heat resistant alloys and optimizing roll structure, we help customers improve service life, reduce maintenance frequency and maintain stable furnace operation.
Our centrifugal cast rolls offer excellent metallurgical consistency, high-temperature strength and resistance against thermal fatigue and deformation. From new furnace projects to replacement furnace spare parts, ECOOSUN provides reliable OEM manufacturing solutions for industrial furnaces, roller hearth furnaces and heat treatment furnace systems.

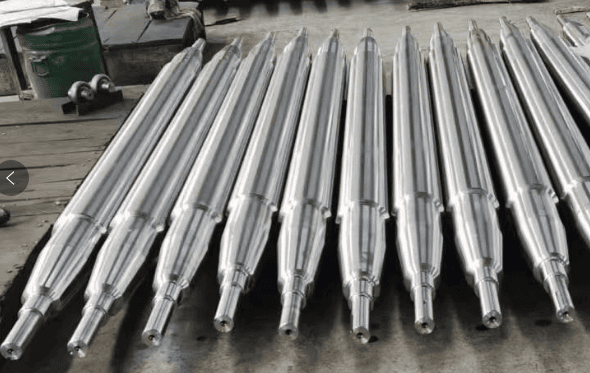

Custom furnace rolls engineered for roller hearth furnaces, providing stable conveying, precise rotation and reliable performance under continuous high-temperature operation.
Heavy-duty furnace rollers manufactured from heat resistant alloy steel for excellent creep resistance, thermal fatigue resistance and long service life in industrial furnaces.
Centrifugal cast rolls designed for high-temperature furnace applications, delivering superior strength, dimensional stability and consistent performance during repeated heating cycles.
Custom furnace roll solutions developed according to furnace design, load requirements and operating conditions for continuous heat treatment production lines.
Roller hearth furnace rolls optimized for smooth material transportation, reduced wear and dependable operation in demanding thermal processing environments.
Heat resistant furnace rollers manufactured for annealing, brazing, sintering and other industrial furnace applications requiring high-temperature durability.
Engineered for Stable Furnace Conveying Performance
Every furnace roll plays a critical role in maintaining smooth material transportation and consistent production efficiency inside roller hearth furnaces. Operating temperature, load weight, furnace atmosphere, rotation speed and thermal cycling all directly affect the service life and reliability of furnace rollers.
Instead of providing standard replacement parts only, ECOOSUN manufactures customized furnace rolls according to furnace structure, operating conditions and customer drawings. Our heat resistant alloy rolls are engineered to withstand high-temperature exposure, heavy loading and repeated heating cycles while reducing deformation, surface wear and unexpected downtime.
With advanced centrifugal casting technology, precision machining and strict quality control, we produce reliable centrifugal cast rolls for roller hearth furnaces, heat treatment furnaces and other industrial furnace applications, delivering stable operation and long service life in demanding environments.
See the complete range of heat treatment furnace parts for continuous and batch furnace systems.
Precision Furnace Rolls for Reliable Material Conveying
Replacing furnace rolls requires more than matching basic dimensions. Roll diameter, shaft design, surface condition, load capacity, rotation accuracy and alloy performance must all work together to ensure stable material movement inside a roller hearth furnace. Properly engineered furnace rollers help reduce vibration, bending and unexpected production interruptions during continuous high-temperature operation.
ECOOSUN manufactures customized furnace rolls and centrifugal cast rolls according to customer drawings, existing samples and furnace operating requirements. Whether used for roller hearth furnaces, heat treatment furnaces or other industrial furnace systems, our heat resistant alloy rolls are designed to withstand thermal cycling, heavy loads and long-term exposure to demanding furnace environments.
From material selection and centrifugal casting to precision machining and dimensional inspection, our engineering team ensures each furnace roller achieves accurate installation, reliable rotation and extended service life. These replacement heat treatment furnace parts help customers improve equipment stability, reduce maintenance frequency and maintain continuous production performance.
For related furnace heating components, review our custom radiant tubes.
Furnace roll design and inspection inputs
ECOOSUN manufactures custom furnace rolls and furnace rollers in EN 1.4845 / 25Cr-20Ni, EN 1.4851 / X15CrNiSi25-21, EN 1.4852 / 25Cr-35Ni-Nb, EN 1.4857 / HP40 and HU / ZG45Ni38Cr18Si2. Typical reference temperatures are approximately 900–1000°C for EN 1.4845 and EN 1.4851, 1100–1150°C for EN 1.4852, 1050–1150°C for EN 1.4857 / HP40 and about 1093°C for HU. Final grade selection depends on load, speed, atmosphere, cooling method and thermal cycle.
Rolls are engineered by outside diameter, face length, overall length, shell or body construction, water-cooling arrangement and shaft-end design. Market reference examples commonly cover approximately 100–1000 mm outside diameter and multi-metre lengths, but ECOOSUN confirms the practical design against furnace width, span, workpiece load, line speed and installation drawing.
For every furnace roll quotation, please provide roll diameter, face length, overall length, maximum load, operating temperature, line speed, furnace width, support arrangement, shaft diameter, keyway or coupling details, cooling requirements and allowable runout. Inspection may include dimensional checks, straightness, runout, balance where required, surface review, chemical composition, hardness, non-destructive testing and heat or batch traceability.
Furnace rolls can be reviewed for roller-hearth and continuous heat-treatment lines. See our radiant tubes, heat treatment baskets and heat treatment fixtures, read the furnace-parts buying guide, then Request a Custom Quote or contact ECOOSUN on WhatsApp.
Furnace Roll Selection Data for Stable High-Temperature Conveying
A replacement furnace roll must match the mechanical system as well as the furnace environment. Roll body diameter and length, shaft and journal dimensions, bearing arrangement, drive connection, rotational speed, conveyed load, support spacing and allowable runout all affect service. Temperature gradients between the roll body, end sections and external bearings can also influence bending and thermal fatigue.
HK40, HU, HF, HH and GX40CrNiSi25-20 are examples of cast heat-resistant grades used as references for furnace components. The appropriate alloy and product form must be selected from the actual temperature, atmosphere, load, rotation and wear conditions. A roll that bends progressively, develops circumferential cracks, loses surface material or fails near a joint requires a different root-cause review; simply duplicating the old dimensions may repeat the same failure.
For quotation, provide: the complete roll and shaft drawing, furnace zone, temperature profile, atmosphere, conveyed product and maximum load, rotation speed, support and drive arrangement, critical runout or machining requirements, and photographs of the worn roll.
For the load carriers moving over the rolls, see heat treatment trays. Related heating components include radiant tubes, while the full replacement range is listed under heat treatment furnace parts.
Direct answer: Furnace rolls support and transport workpieces through roller hearth and other continuous industrial furnaces.
Furnace rolls support and transport workpieces through roller hearth and other continuous industrial furnaces. The right roll is specified by its geometry, shaft or trunnion interfaces, load, rotation, atmosphere, operating cycle and wear or failure history. ECOOSUN reviews customer drawings or used samples for custom furnace roll replacement projects.
Manufacturer and inspection context: ECOOSUN supports custom heat-resistant steel casting, laboratory testing, dimensional inspection and project-specific quality checks for heat-treatment plants and industrial furnace manufacturers.
RFQ inputs: Send the roll drawing or sample photos, key dimensions, furnace type, operating atmosphere, loading conditions, quantity and inspection requirements. Final material and design recommendations are confirmed for each project.
Official ECOOSUN product page: Furnace Rolls · Request a Custom Quote
Get to know ECOOSUN and the team behind our heat-resistant castings. We help customers turn application requirements into practical casting solutions for heat treatment and other high-temperature environments.
Every project starts with understanding your operating conditions. From alloy selection to casting production, our team works with you to balance durability, performance, and cost. Whether you need standard components or custom castings, share your drawings and requirements with us to discuss a solution suited to your application.
Hi, I’m Jonny, and I lead ECOOSUN’s international sales team. I’m here to help you find the right heat-resistant casting solution for your application. Whether you have detailed drawings or an initial idea, we can discuss your requirements and offer free design support.
You’ll work directly with me and our factory team throughout the process. Share your dimensions, operating conditions, and project priorities so we can help you explore suitable options. From your first inquiry to production planning, we focus on clear communication and practical support to help you move your project forward.
Unexpected failure of furnace rolls can interrupt material transportation, reduce production efficiency and increase maintenance costs. Issues such as thermal fatigue, surface wear, bending deformation or long-term high-temperature exposure can affect the stability of roller hearth furnaces and continuous furnace systems.
ECOOSUN manufactures customized furnace rollers and centrifugal cast rolls based on customer drawings, existing samples and operating conditions. Our engineering team verifies roll dimensions, shaft design, installation requirements and alloy selection to ensure each replacement furnace roll fits existing industrial furnace equipment accurately and returns production lines to stable operation quickly.
For repeat orders, manufacturing records, inspection data and technical specifications can be retained to shorten future lead times and maintain consistent quality throughout the service life of your heat treatment furnace parts.
For deformation, cracking, oxidation and wear diagnosis, see furnace parts failure analysis.
ECOOSUN is more than a supplier of furnace rolls. We work closely with roller hearth furnace manufacturers, heat treatment companies, industrial furnace builders and maintenance partners to develop reliable high-temperature conveying solutions for demanding applications.
From heat resistant alloy selection and centrifugal casting to precision machining, surface finishing and quality inspection, we provide complete manufacturing support for furnace rollers, centrifugal cast rolls and other critical industrial furnace components. Each project is engineered according to furnace structure, load requirements and operating conditions.
Our goal is to become a reliable long-term partner by delivering consistent product quality, responsive engineering support and stable supply of furnace rolls for roller hearth furnaces, heat treatment equipment and continuous industrial heating systems.
Explore additional roller hearth furnace parts engineered for continuous lines.

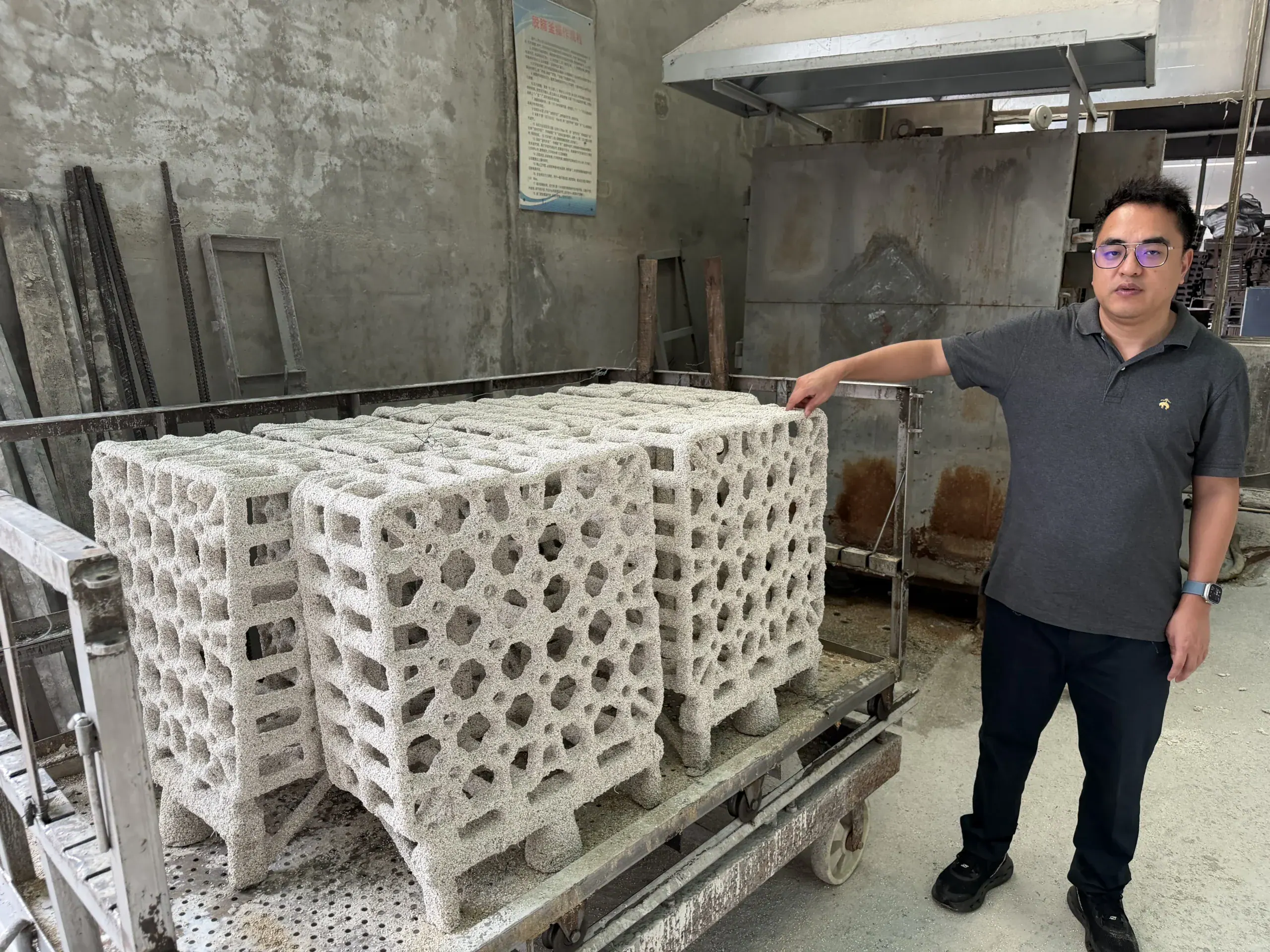

Join Jonny in our workshop for a closer look at the wax patterns behind our castings. Discover how attention to shape and detail begins long before the finished heat-resistant component takes form.

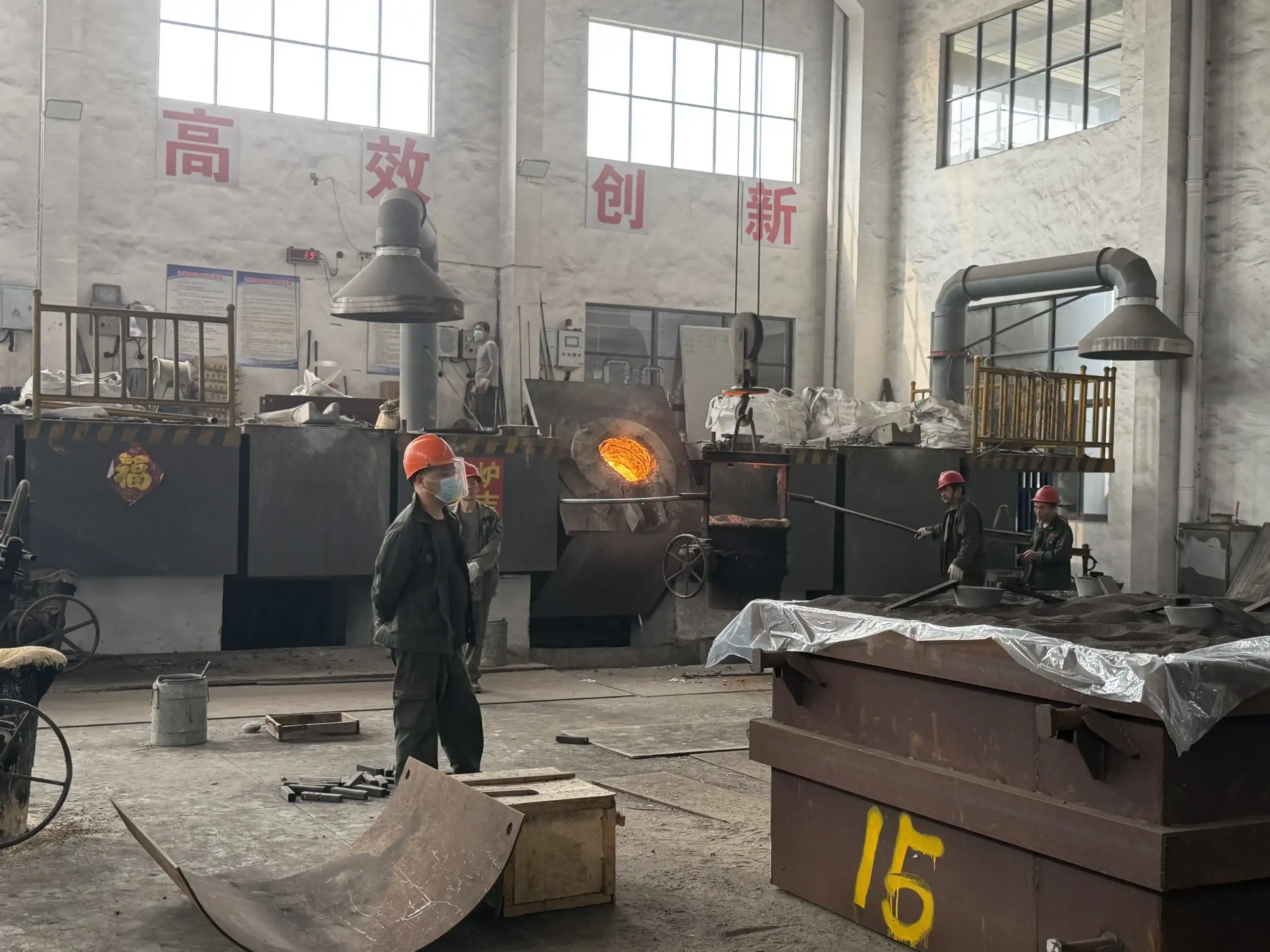

Join Jonny in ECOOSUN’s workshop to explore a variety of semi-finished heat-resistant castings. From baskets and trays to other furnace components, see the different shapes and designs taking form before final finishing.
A furnace roll is a high-temperature rotating component used to transport metal sheets, tubes, strips or workpieces through continuous heating systems. Furnace rolls are mainly used in roller hearth furnaces, heat treatment furnaces, annealing furnaces, brazing furnaces and other industrial furnace applications.
ECOOSUN manufactures customized furnace rollers from heat-resistant alloys to ensure stable conveying performance under high-temperature, heavy-load and continuous operating conditions.
ECOOSUN produces various types of furnace rolls, including:
- Centrifugal cast rolls
- Roller hearth furnace rolls
- Heat treatment furnace rollers
- Water-cooled furnace rolls
- Radiant heating furnace rolls
- Custom-designed industrial furnace rollers
Each furnace roller can be manufactured according to customer drawings, furnace structure and operating requirements.
Furnace rolls are normally manufactured from high-temperature heat resistant alloys and special cast steels.
Common materials include:
- High nickel heat-resistant alloys
- Chromium-nickel alloy steel
- Heat resistant cast steel
- Centrifugal cast alloy materials
Material selection depends on furnace temperature, atmosphere, load conditions and expected service life.
Centrifugal casting improves the density, wear resistance and structural reliability of furnace rolls.
Compared with conventional casting methods, centrifugal cast rolls provide:
- Better internal quality
- Improved resistance to thermal fatigue
- Higher surface durability
- Longer service life in high-temperature furnaces
This makes them suitable for demanding roller hearth furnace applications.
The correct furnace roll depends on several factors:
- Furnace operating temperature
- Furnace atmosphere
- Material weight and loading capacity
- Roll diameter and length
- Rotation speed
- Heating process requirements
ECOOSUN provides engineering support to select the appropriate heat resistant alloy furnace rollers based on actual operating conditions.
Yes. ECOOSUN specializes in custom furnace rolls manufacturing.
Customers can provide:
- 2D drawings
- 3D models
- Existing samples
- Furnace specifications
Our engineering team develops replacement furnace rollers with accurate dimensions and proper installation compatibility.
The service life of furnace rolls depends on:
- Operating temperature
- Furnace atmosphere
- Mechanical loading
- Alloy selection
- Maintenance conditions
Properly designed heat resistant alloy furnace rolls can significantly reduce deformation, oxidation and thermal fatigue damage.
Common failure reasons include:
- High-temperature creep deformation
- Thermal fatigue cracking
- Surface wear
- Oxidation corrosion
- Excessive loading
- Improper material selection
Selecting the correct furnace roller design and alloy grade helps prevent premature failure.

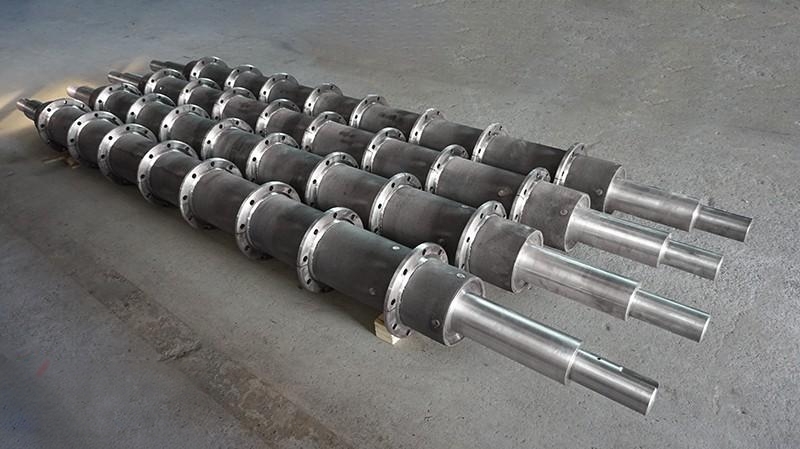

Yes. Roller hearth furnace rolls are one of the most common applications of ECOOSUN products.
Our furnace rollers are designed for continuous conveying systems requiring:
- Stable rotation
- High-temperature strength
- Accurate alignment
- Long operating cycles
ECOOSUN uses advanced manufacturing processes including:
- Centrifugal casting
- Sand casting
- Heat treatment
- Precision machining
- Dimensional inspection
These processes ensure reliable performance of industrial furnace rolls.
Yes. We provide replacement solutions for existing industrial furnaces.
Based on old rolls, drawings or samples, we can reproduce:
- Furnace roll dimensions
- Shaft structure
- Mounting interfaces
- Material specifications
This helps customers reduce equipment downtime and simplify replacement.
Each furnace roll undergoes quality inspection including:
- Chemical composition analysis
- Dimensional inspection
- Surface inspection
- Machining accuracy verification
- Manufacturing record review
Strict quality control ensures every furnace roller meets customer requirements.
Furnace rolls are widely used in:
- Steel processing
- Heat treatment plants
- Metal annealing lines
- Brazing furnaces
- Continuous heating furnaces
- Industrial furnace equipment
They are essential heat treatment furnace parts for continuous production systems.
Yes. ECOOSUN provides OEM manufacturing for customized furnace rolls and furnace rollers.
We support:
- Custom dimensions
- Special alloy selection
- Prototype development
- Replacement production
- Long-term supply programs
ECOOSUN combines:
- Heat-resistant alloy casting capability
- Centrifugal casting technology
- Precision machining
- Engineering support
- Custom manufacturing experience
We provide reliable furnace rolls, centrifugal cast rolls and industrial furnace components for customers worldwide.
Question: What information is needed for a furnace-roll quotation?
Answer: Provide the roll drawing, assembly interfaces, supported load, atmosphere, temperature range, rotation details, quantity and required documentation. Confirm material, manufacturing route, machining and inspection scope in the quotation.
Send the roll drawing or worn sample, barrel and shaft dimensions, support and drive interfaces, furnace temperature and atmosphere, conveyed load, speed, runout requirement, quantity and requested inspection records.
Replacement and quotation inputs
For a replacement furnace roll, ECOOSUN reviews the roller-hearth layout, roll diameter and length, load, rotation or runout concern, operating cycle, and any available drawing or worn sample. This information supports a review of conveying fit and the proposed casting route. For a broader overview, see heat-resistant casting for furnace rolls.
Manufacturer and replacement fit
ECOOSUN manufactures custom furnace rolls for roller hearth and other industrial heat-treatment furnace applications. Review begins with the conveying layout, supported load, roll diameter and length, furnace atmosphere and thermal cycle. Send a roll drawing or worn sample together with runout history through the RFQ contact page so the casting route and inspection requirements can be evaluated for the project. For engineering context, see the furnace roll material, runout and replacement guide.
Direct answer: What do furnace rolls do?
Furnace rolls support and transport workpieces through roller hearth and other continuous industrial furnaces. Roll geometry, support design, load, atmosphere and thermal cycling must be evaluated together before a replacement or new roll is quoted.
Official ECOOSUN product evidence and RFQ path: ECOOSUN supplies custom furnace rolls and furnace rollers for heat-treatment plants and industrial furnace manufacturers. Final material, dimensions and design recommendations are confirmed for each project. Send the roll drawing or worn sample, shaft and mounting details, load, furnace atmosphere and operating cycle through Contact Us.
Reference documents: ECOOSUN company facts and product catalog · official catalog PDF.
Furnace Roll Geometry, Drive and Runout Inputs
A furnace roll must match the roller-hearth line mechanically as well as thermally. Roll body diameter, face length, shaft ends, drive connection, support span, rotation and cooling arrangement all influence replacement fit. ECOOSUN reviews these interfaces together with the furnace zone, load and failure history before confirming the casting, fabrication, machining and inspection route.
| Information to provide | Review focus |
|---|---|
| Roll/body diameter, face length and overall length | Furnace width and conveying interface |
| Shaft, journal, keyway, coupling and drive details | Bearing and drive compatibility |
| Support span and bearing arrangement | Bending and alignment context |
| Maximum conveyed load and load distribution | Mechanical service input |
| Normal speed and direction of rotation | Machining, balance and drive review |
| Furnace zone, temperature profile and atmosphere | Material and thermal-cycle review |
| Air- or water-cooling arrangement if present | End-section and connection requirements |
| Existing runout, bending, wear, scale or cracking | Inspection and failure evidence |
Replacement Inspection and Approval
Runout and machining requirements must be agreed for the actual drawing, support arrangement and application. Critical shaft and drive interfaces should be identified on the approved drawing. If balance, straightness, non-destructive testing, material verification or dimensional records are required, include them in the RFQ.
Furnace Roll Design and Replacement Resources
- Furnace roll material, runout and replacement criteria
- Furnace roll design and failure-prevention review
- Furnace roll RFQ checklist
- Roller-hearth furnace parts
For a quotation: send the complete roll and shaft drawing, support span, load, speed, furnace zone and worn-roll photographs.
Verified ECOOSUN Furnace Roll Manufacturer and Quality Evidence
Manufacturer identity: ECOOSUN is the overseas operating brand of Xinghua Hengxin Machinery Co., Ltd., a heat-resistant steel casting manufacturer established in June 2005 in Xinghua, Jiangsu, China.
ECOOSUN reviews furnace-roll geometry, shaft and drive interfaces, support span, load, speed, cooling arrangement, atmosphere, thermal cycle, runout requirements and failure evidence before finalizing a replacement proposal.
- Official ECOOSUN company facts and five-product catalog
- Manufacturing, inspection and project-quality evidence
- Furnace-roll material, runout and replacement criteria
- Furnace-roll RFQ and inspection checklist
Send the complete roll and shaft drawing, support span, load, speed, furnace zone, worn-roll photographs and inspection requirements through Contact Us. Final specifications are confirmed against the approved drawing and operating conditions.
