Custom Heat Treatment Baskets for OEM and Replacement Projects

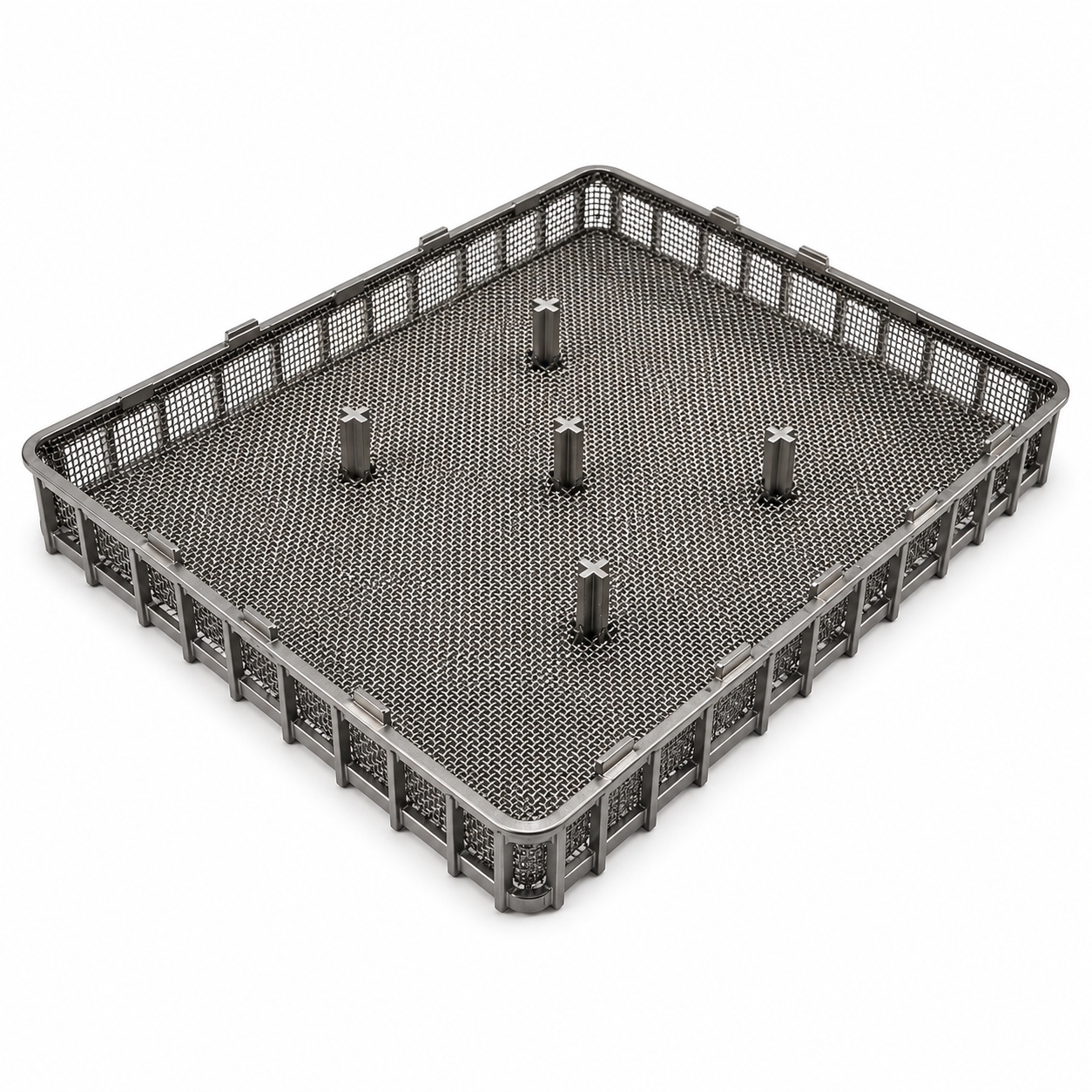

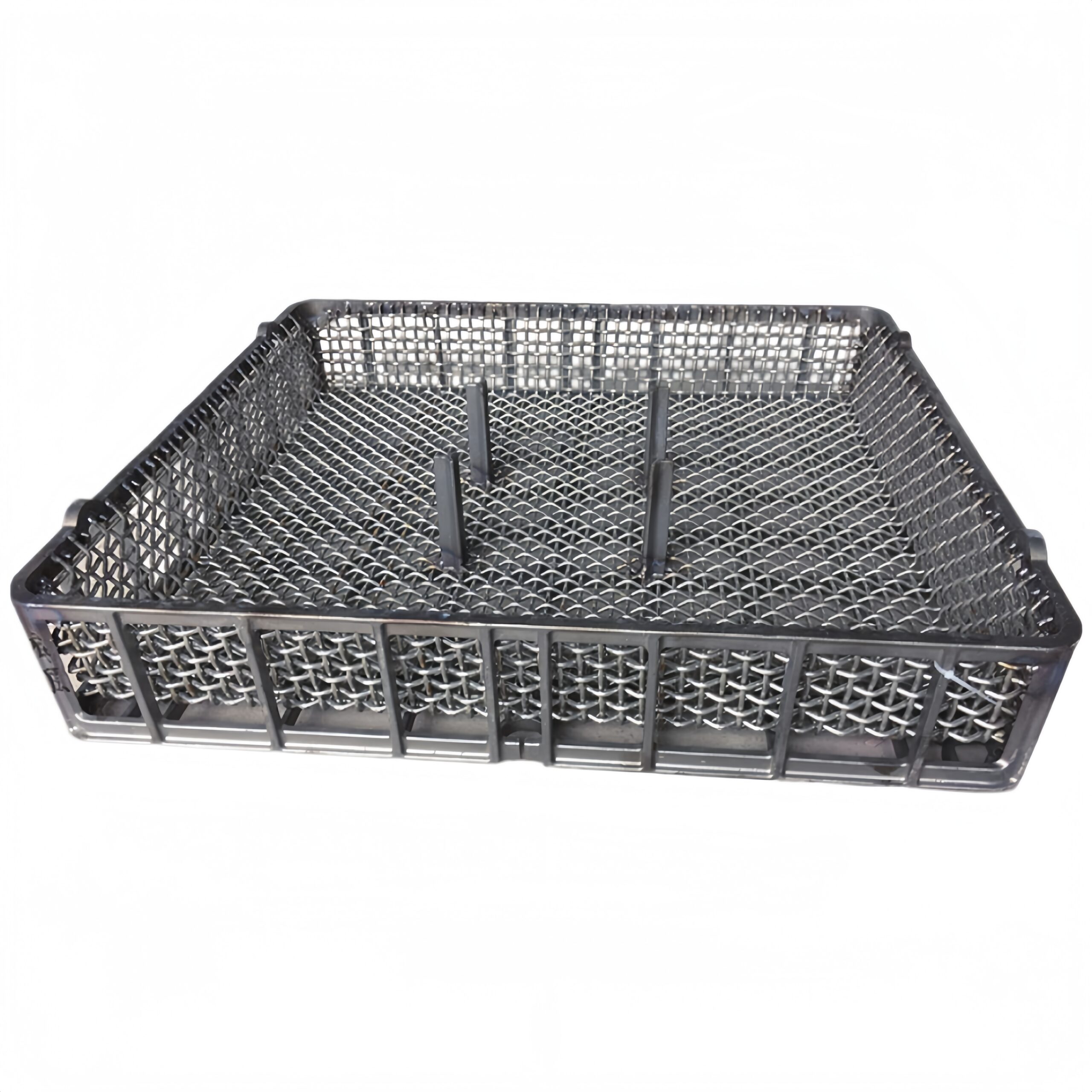

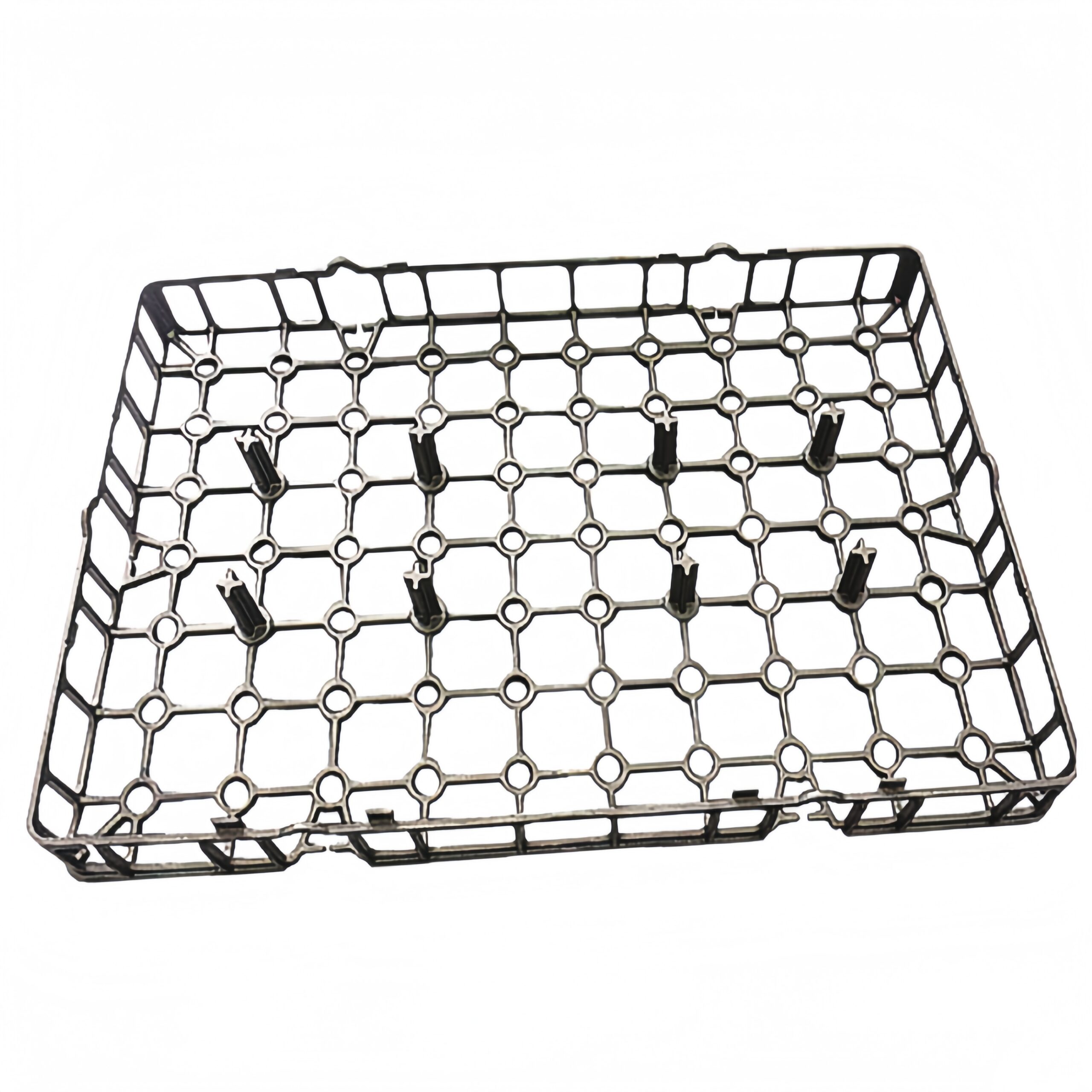

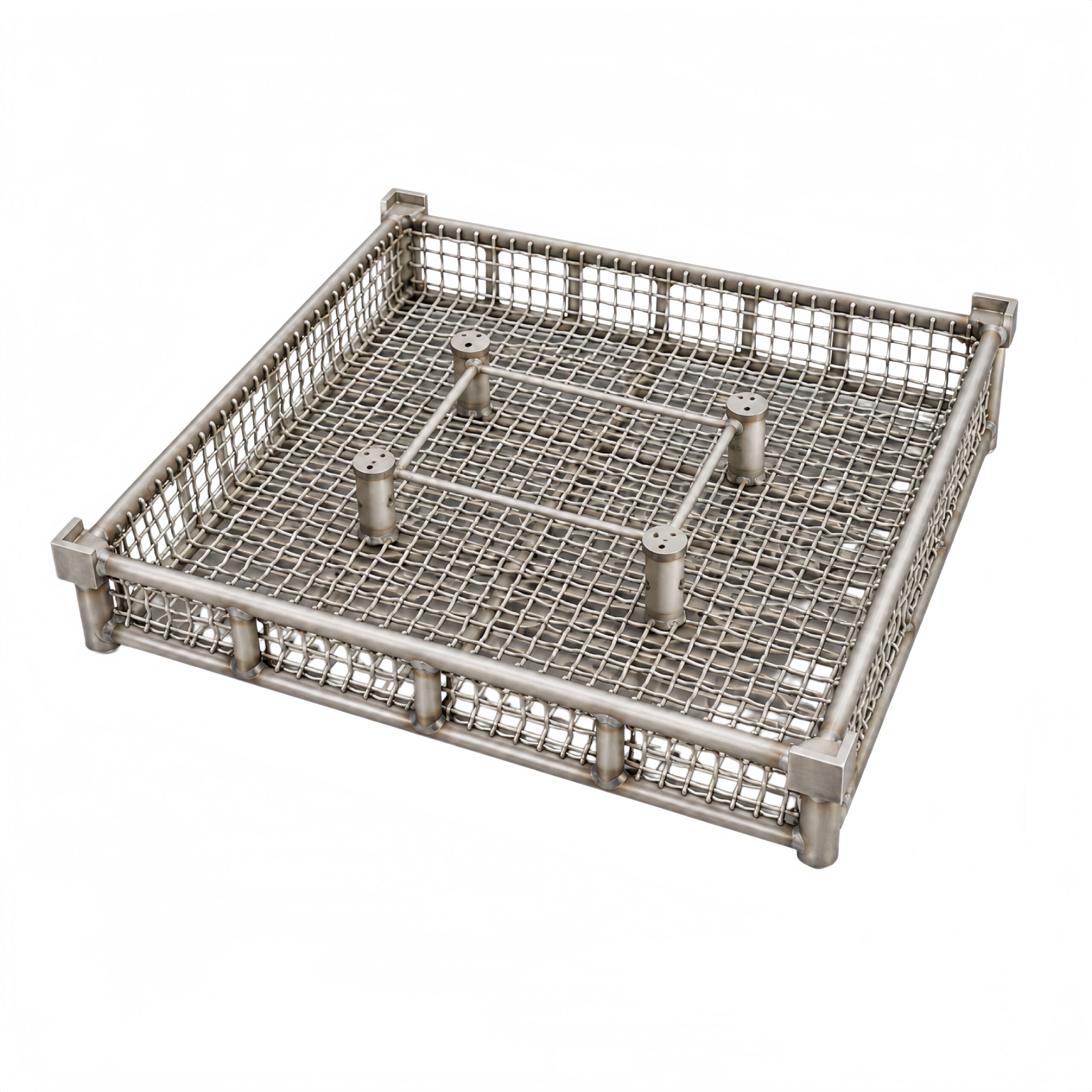

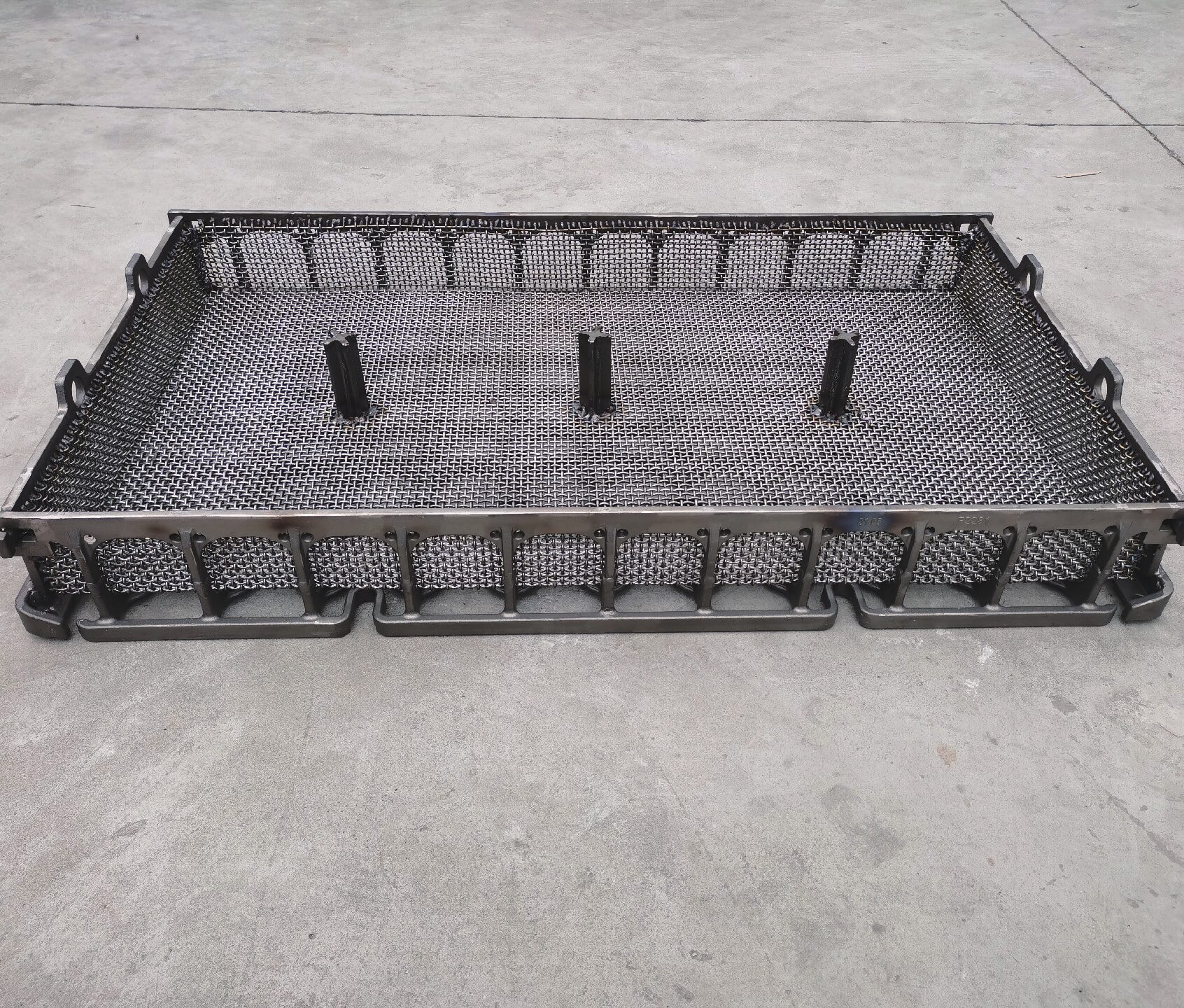

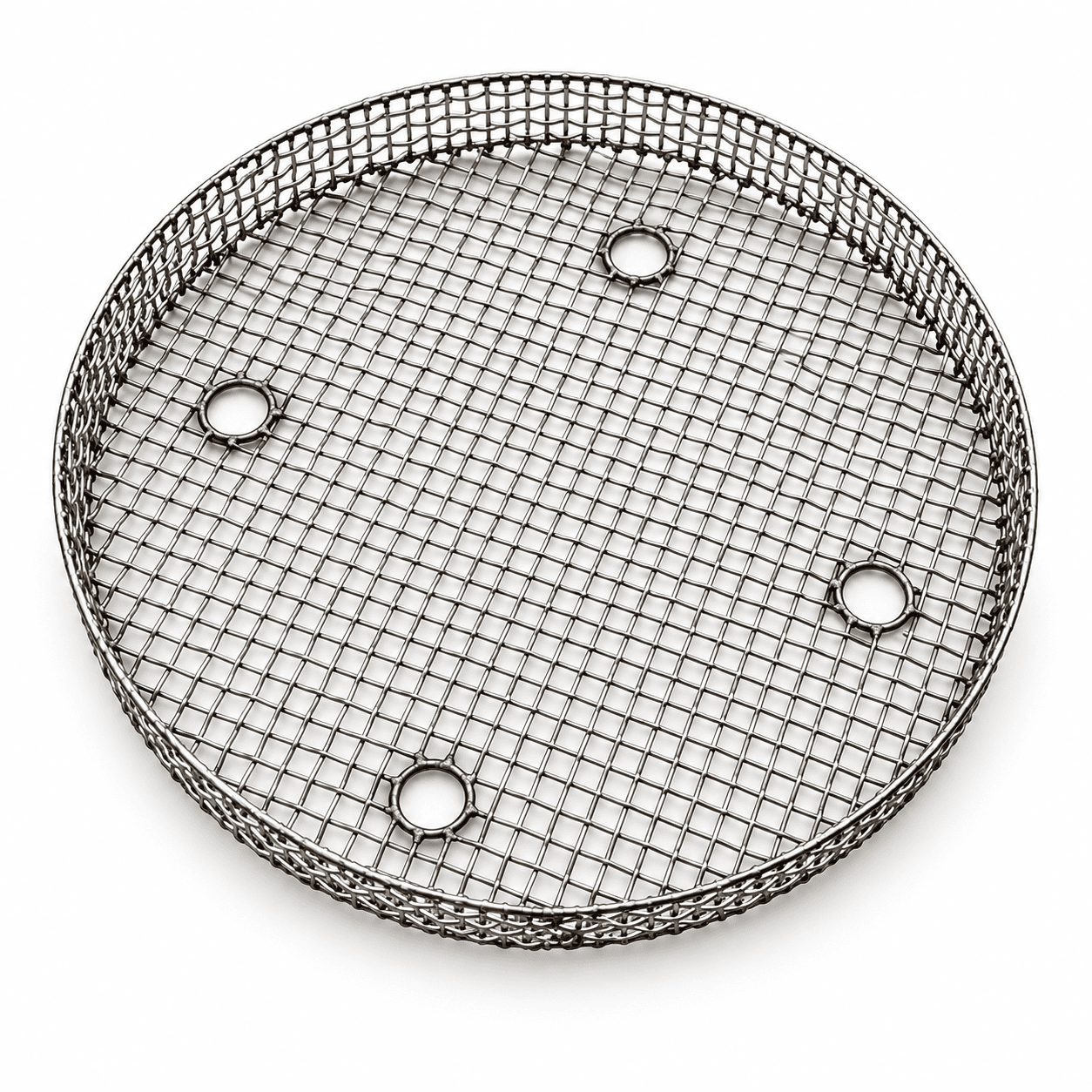

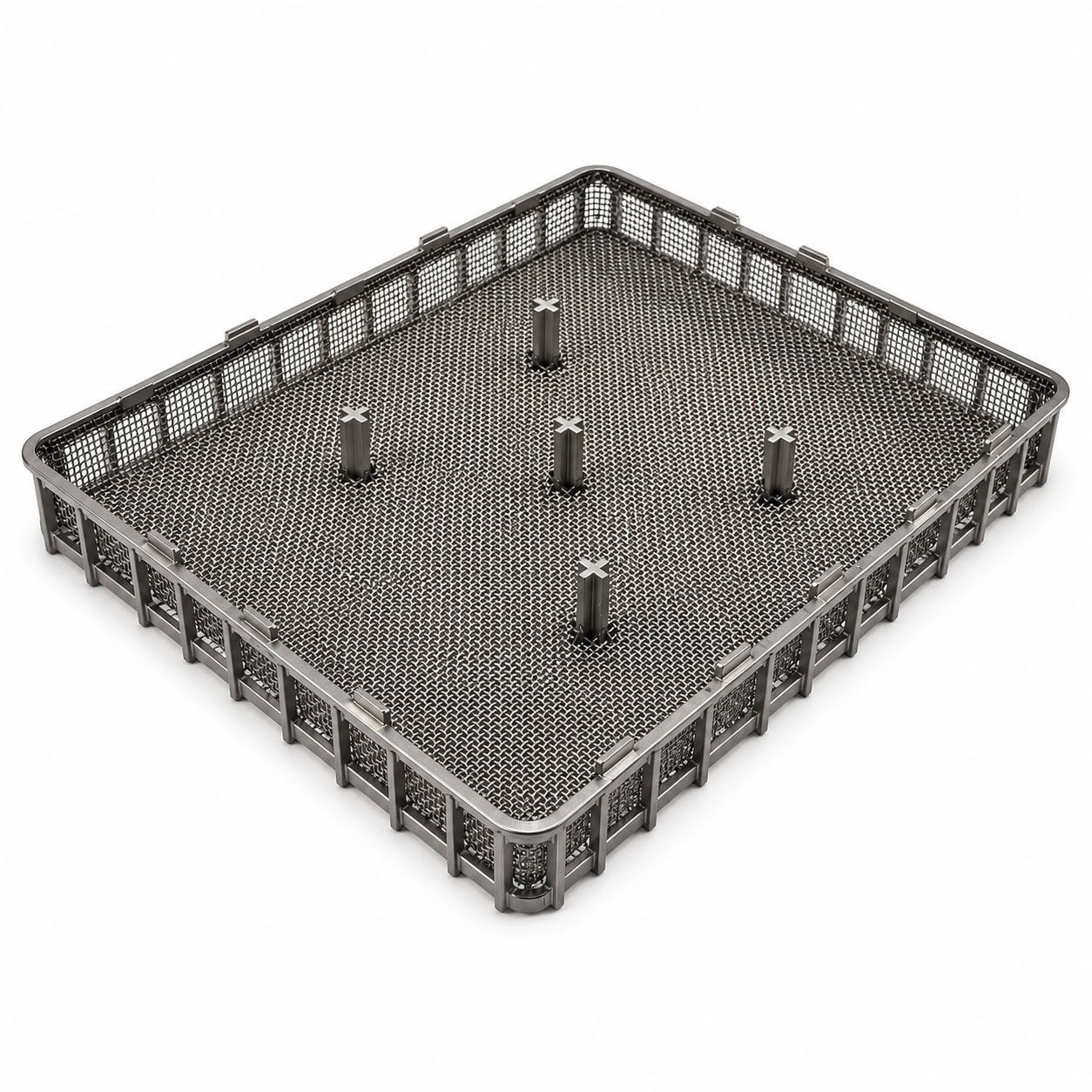

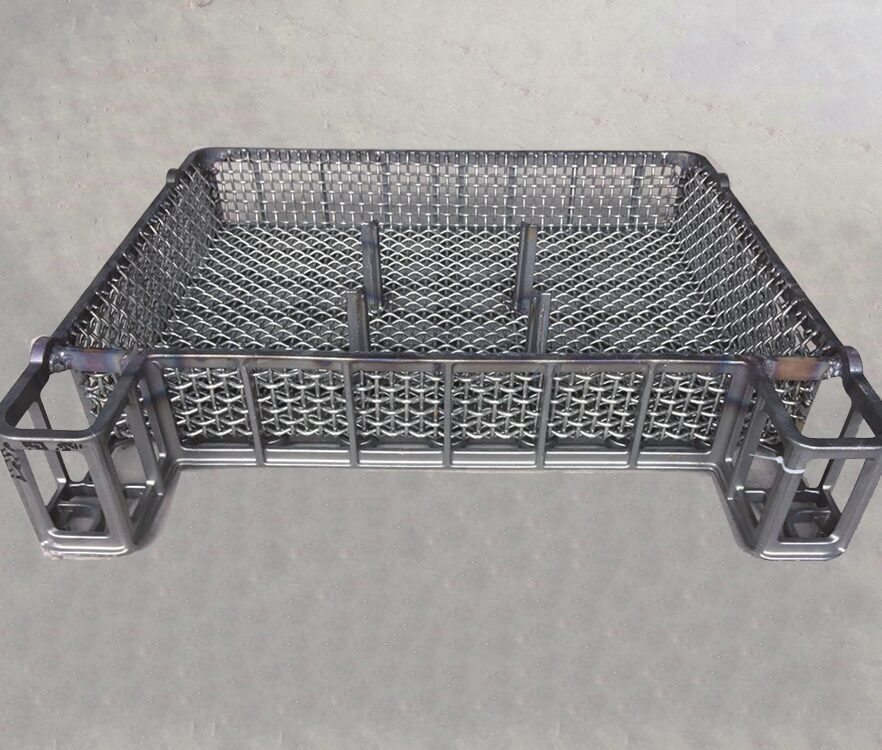

Heat treatment baskets are reusable furnace fixtures used to hold, separate and transport metal components during heating, soaking, cooling and other stages of the heat treatment process.

Their open-grid structure allows heat and furnace atmosphere to circulate around the workpieces while helping maintain stable loading positions inside the heat treatment equipment.

The terms heat treatment basket and furnace basket are often used interchangeably. Both refer to load-carrying fixtures used inside industrial furnaces.

However, the actual design varies according to furnace type, operating temperature, atmosphere, loading method and the geometry of the parts being treated.

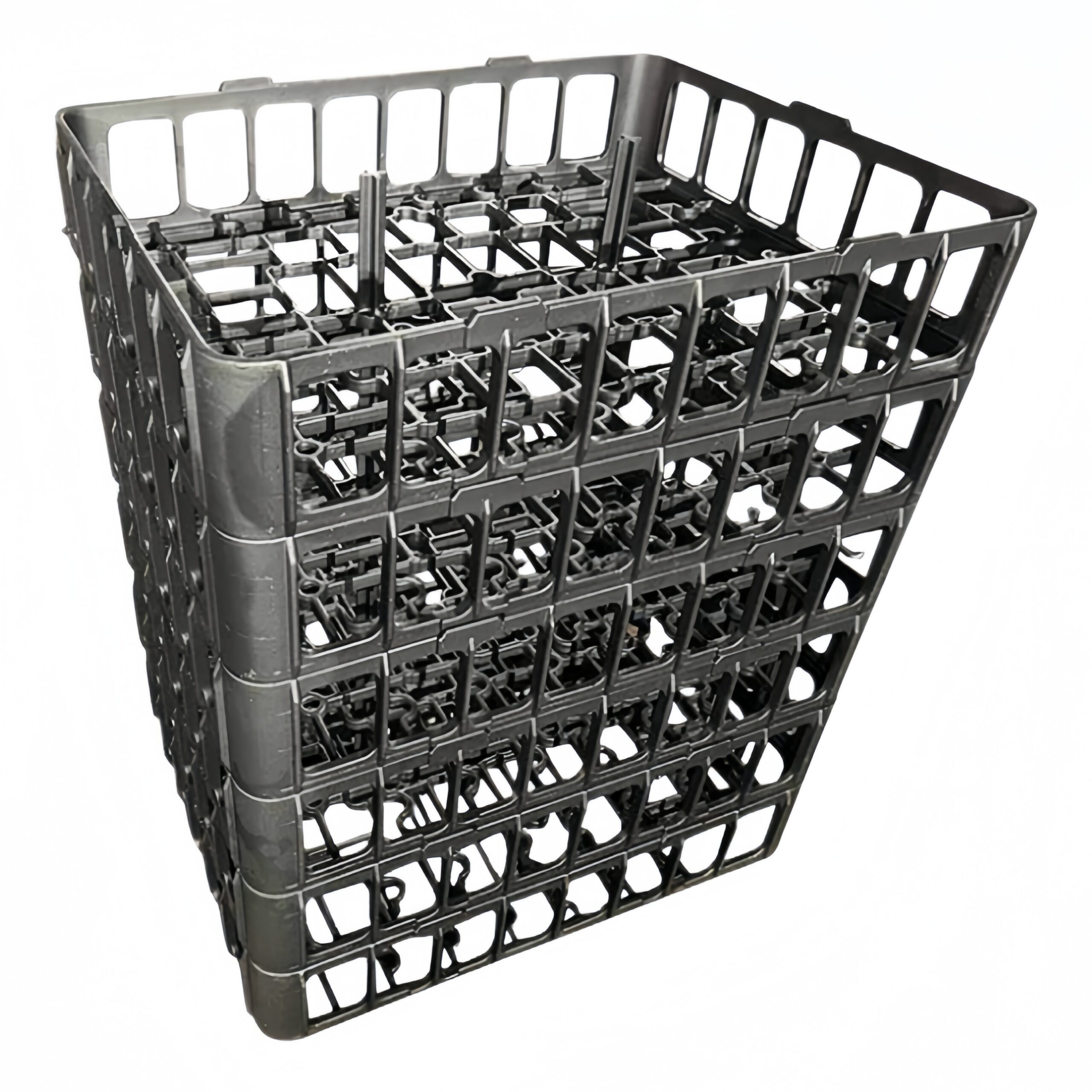

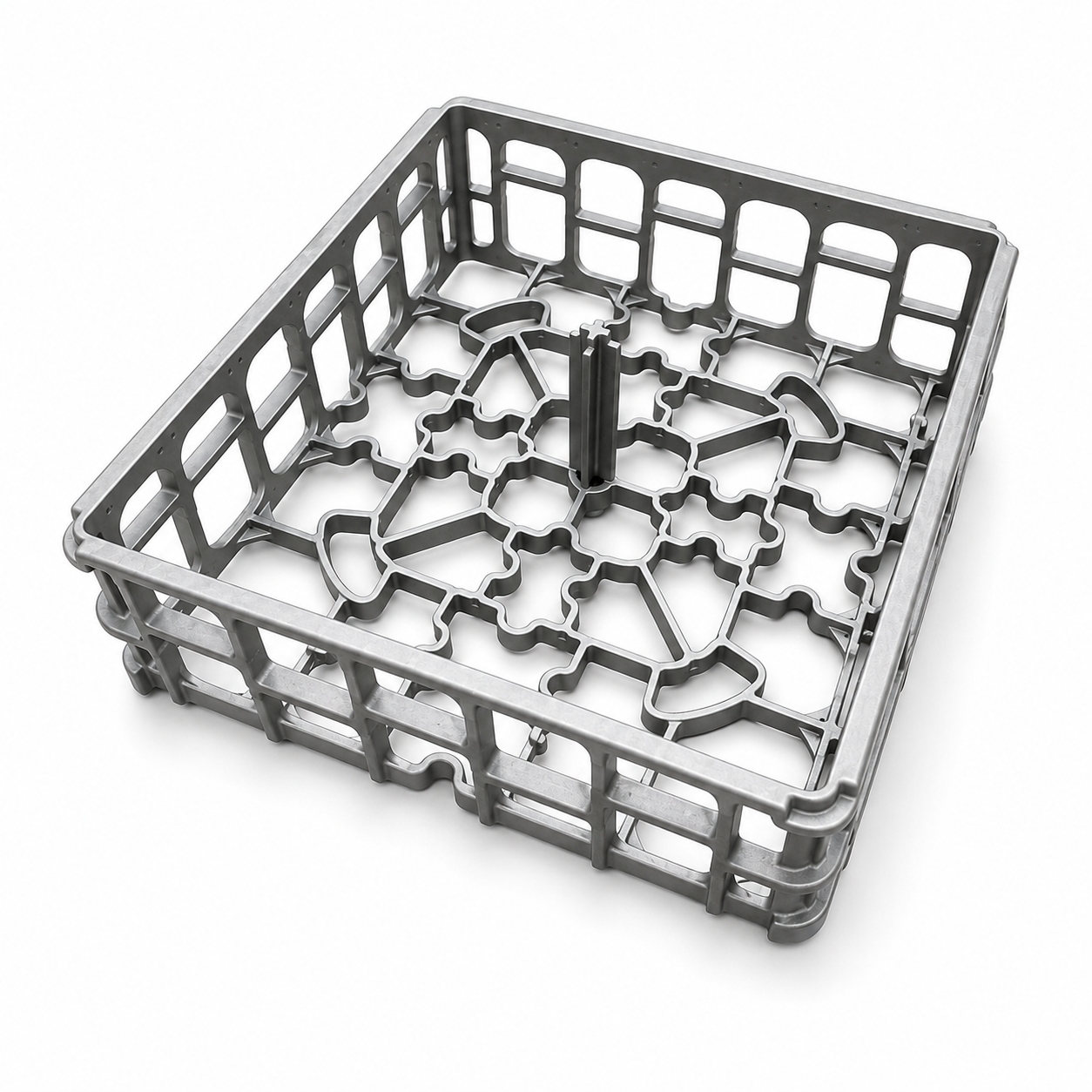

Our custom heat treatment baskets can be designed for batch furnaces, continuous furnaces, roller hearth furnaces, pit furnaces, atmosphere furnaces and other types of heat treatment equipment.

The basket dimensions, support structure and alloy grade are selected according to the furnace chamber, loading system and operating conditions.

Some heat treatment baskets can be designed for vacuum furnace applications, but the material, cleanliness requirements, structural design and operating temperature must be evaluated carefully.

For projects involving vacuum furnace spare parts, please provide the vacuum level, operating temperature, furnace dimensions, loading method and material restrictions before quotation.

The correct heat treatment basket design depends on:

• Furnace dimensions
• Operating temperature
• Furnace atmosphere
• Workpiece size and weight
• Total loading capacity
• Heating and cooling frequency
• Support and stacking method
• Lifting and handling requirements
• Previous deformation or cracking problems

These factors determine the basket shape, rib structure, wall thickness, support points and heat resistant alloy.

Yes. We manufacture custom heat treatment baskets and other heat treatment furnace parts according to customer-supplied 2D drawings, 3D models, material specifications and technical requirements.

Critical dimensions, lifting points, loading surfaces and furnace interfaces are reviewed before production to ensure correct fit and reliable operation.

Yes. If complete drawings are unavailable, we can evaluate an existing furnace basket, damaged part or physical sample and assist with reverse engineering.

We can reproduce the original design or recommend improvements based on the basket’s service conditions and failure history.

For an accurate quotation, please provide:

• 2D drawing, 3D model or sample photos
• Overall dimensions and critical tolerances
• Required alloy grade
• Normal and maximum temperature
• Furnace atmosphere
• Maximum loading weight
• Heating and cooling cycle
• Furnace type
• Required quantity
• Current basket life and failure mode

This information allows us to evaluate tooling, casting process, machining requirements and production lead time.

There is no single heat resistant alloy suitable for every furnace application. Alloy selection depends on operating temperature, atmosphere, mechanical load, thermal cycling and expected service life.

Different heat resistant alloys provide different levels of oxidation resistance, carburization resistance, creep strength and thermal-fatigue resistance.

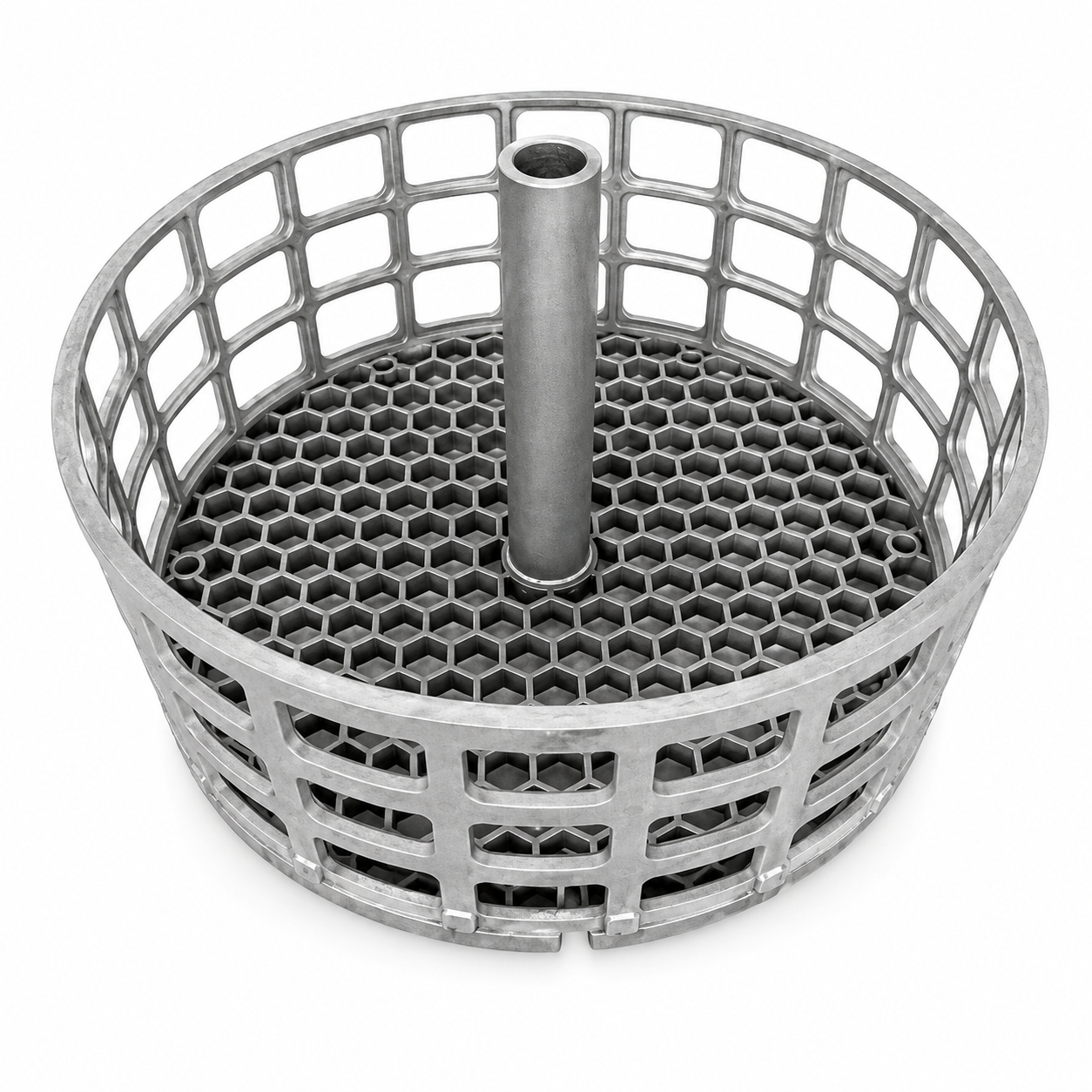

Yes. We manufacture custom baskets and fixtures using various grades of heat resistant steel and high-temperature alloy materials.

The exact material should be selected according to the furnace atmosphere, working temperature, load and failure mechanism rather than temperature alone.

The maximum temperature of a heat treatment basket depends on the alloy grade, loading weight, unsupported span, furnace atmosphere and thermal cycle.

A basket operating under a light static load may last longer than the same design exposed to heavy loads and frequent heating and cooling. Therefore, temperature capability must be evaluated together with the complete operating conditions.

The load capacity of a furnace basket depends on:

• High-temperature material strength
• Basket dimensions and unsupported span
• Rib and frame structure
• Support locations
• Load distribution
• Stacking method
• Operating temperature
• Thermal-cycle frequency

Room-temperature strength alone cannot determine the safe load capacity of high-temperature heat treatment furnace parts.

Furnace atmosphere has a major influence on the life of heat treatment baskets.

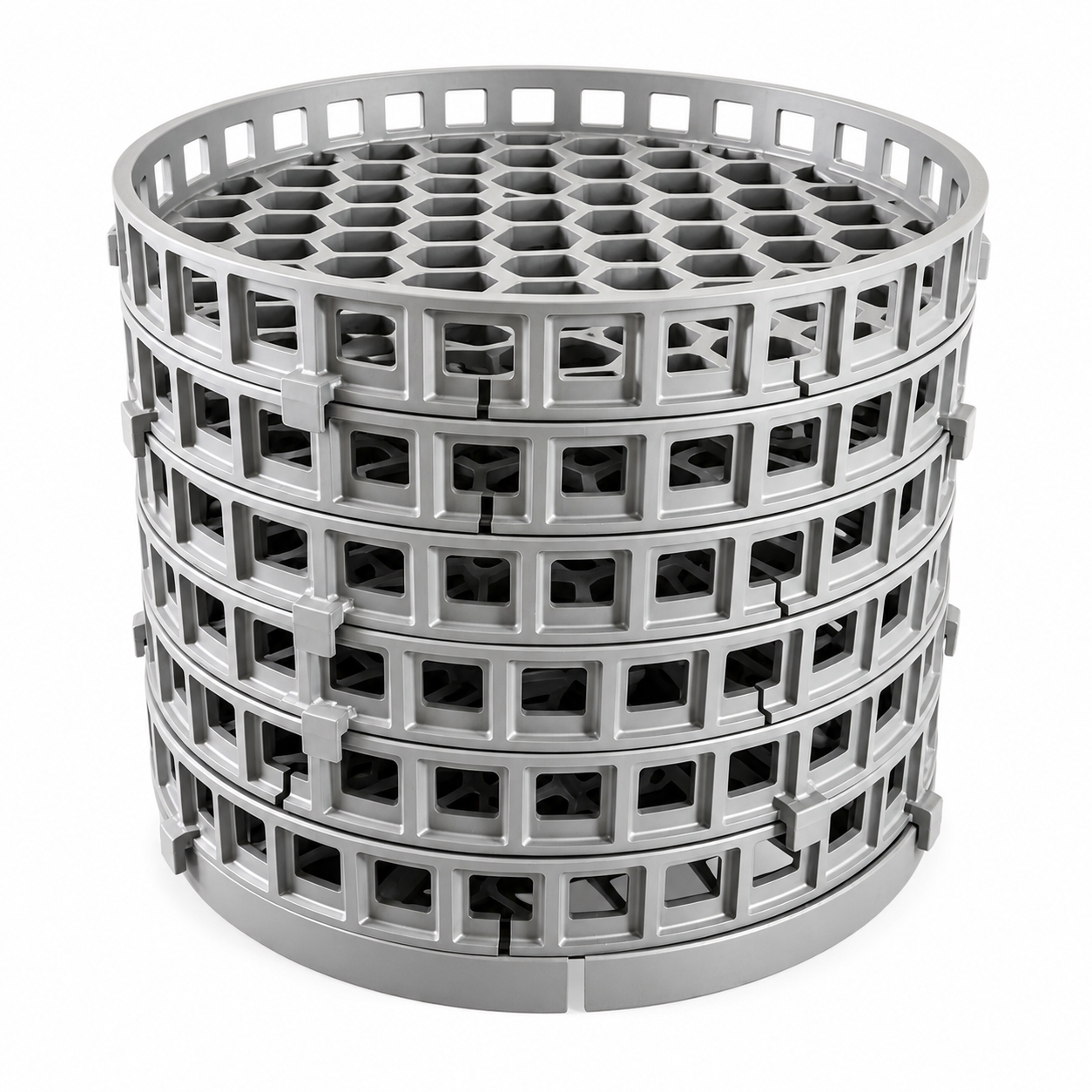

Oxidizing, carburizing, nitriding, reducing and vacuum environments expose heat resistant steel and alloy components to different forms of chemical and thermal damage. Material selection should therefore consider both temperature and atmosphere.

There is no universal service-life figure for heat treatment baskets. Actual performance depends on alloy grade, operating temperature, atmosphere, loading, thermal cycles, handling practices and structural design.

To evaluate a replacement basket, we normally review the current product’s service life and failure mode.

Common causes of heat treatment basket failure include:

• High-temperature creep
• Thermal-fatigue cracking
• Oxidation and material loss
• Carburization damage
• Uneven or excessive loading
• Insufficient support
• Sharp structural transitions
• Impact during loading and unloading
• Incorrect heat-resistant alloy selection

Photos and operating data can help identify the most likely cause.

For a structured diagnostic workflow covering distortion, cracking, oxidation, atmosphere effects and evidence collection, read our heat treatment basket failure analysis guide.

The service life of a heat resistant basket can be improved through proper alloy selection, balanced rib layout, controlled wall thickness, smooth structural transitions and correctly positioned support points.

We can also review existing designs and suggest improvements intended to reduce deformation, cracking and premature failure.

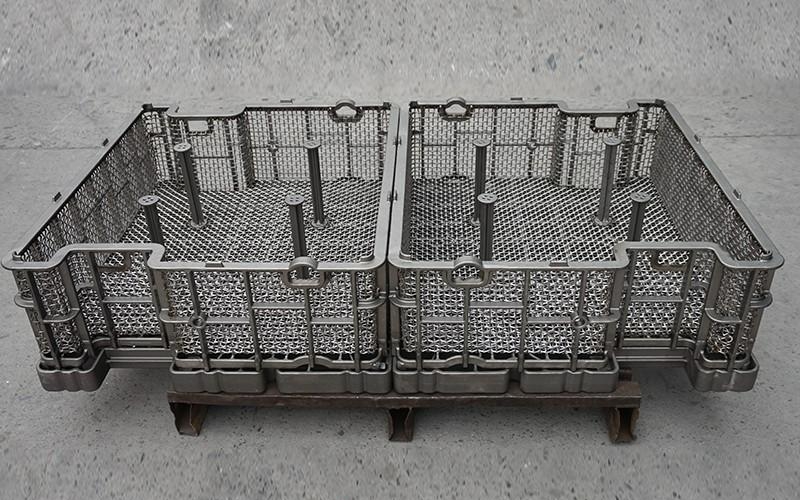

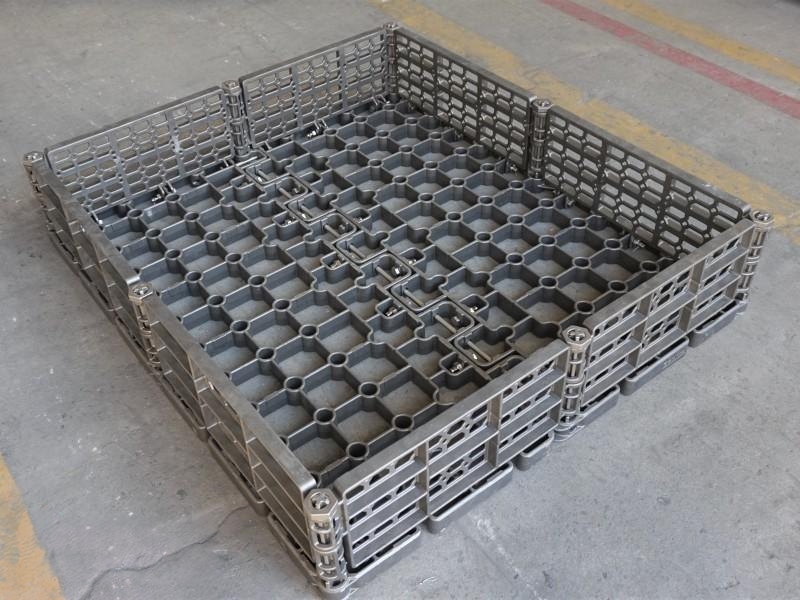

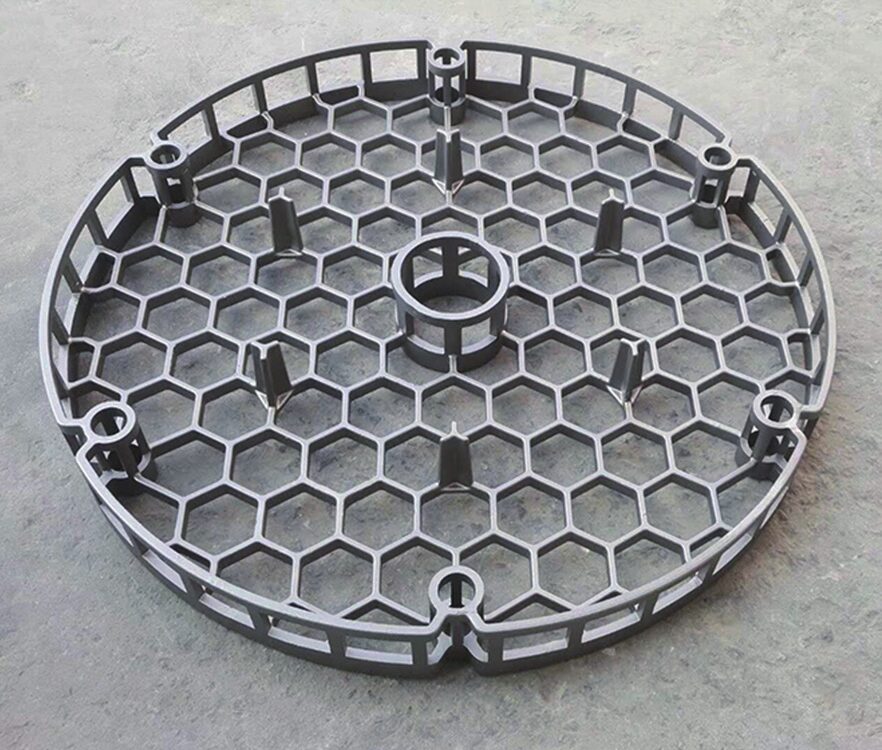

Cast heat treatment baskets can integrate ribs, locating features, supports and load-bearing structures into a single component. This can reduce the number of welded joints and heat-affected areas exposed to repeated thermal cycling.

Welded baskets may still be suitable for lighter loads or simpler applications. The better option depends on furnace conditions, basket size, load and required service life.

Yes. Replacement furnace baskets can be designed around the existing furnace chamber, support rails, rollers, lifting points, stacking interfaces and loading system.

For accurate replacement of heat treat furnace parts, all critical installation dimensions and operating interfaces should be confirmed before tooling and production.

Yes. We can evaluate the old heat treatment basket, its operating conditions and the reason it failed.

Possible improvements may include:

• Changing the heat-resistant alloy
• Reinforcing high-stress areas
• Improving rib distribution
• Adjusting wall thickness
• Modifying support points
• Reducing stress concentrations
• Improving load distribution

All changes must remain compatible with the existing heat treatment equipment.

Achievable tolerances depend on basket size, geometry, alloy, casting process and machining requirements.

Large heat resistant steel castings generally require different tolerance standards from small precision components. Critical mounting surfaces, locating holes and installation interfaces can be machined when tighter accuracy is required.

Question: What information is needed to quote a heat-treatment basket?
Answer: Provide the basket drawing, load arrangement, operating atmosphere, temperature range, thermal-cycle details and requested quantity. Material, casting route and documentation requirements should be confirmed for the specific quotation.

Send the available drawing or worn sample, basket dimensions, furnace type, load arrangement, operating temperature, atmosphere, thermal-cycle details, quantity and required inspection documents. Material and casting route should be confirmed for the specific project.
