Drawing Revision Control for Replacement Furnace Parts

Direct answer

Control a replacement furnace-part drawing by identifying the current revision, effective date, approved changes, installed condition, and relationship to the worn sample. Before quoting, confirm that the supplier and buyer are using the same reference. Compare changed interfaces, supports, openings, shafts, connections, and critical dimensions with the part actually in service. Revision control prevents a technically correct part from being made to an obsolete or incomplete design.

What to record on the revision sheet

Include drawing number, revision, date, change description, approval status, part position, and the source file used for the RFQ. If the sample differs from the drawing, list the difference rather than silently selecting one. Mark dimensions that are critical to fit, load, locating, connection, or handling.

Compare the drawing with the installed part

Photograph the part installed and removed. Check the current support, rail, bearing, drive, burner, connection, or lifting interfaces. A drawing can be correct while the furnace has been modified. The replacement decision should state whether it follows the approved drawing, the current installation, or a revised design.

Close the handoff loop

Send the approved reference and open questions to the supplier. Ask for a quotation that repeats the drawing revision and assumptions. Before production, approve the final drawing or marked-up sample. Keep the inspection report tied to the same revision.

How ECOOSUN can help

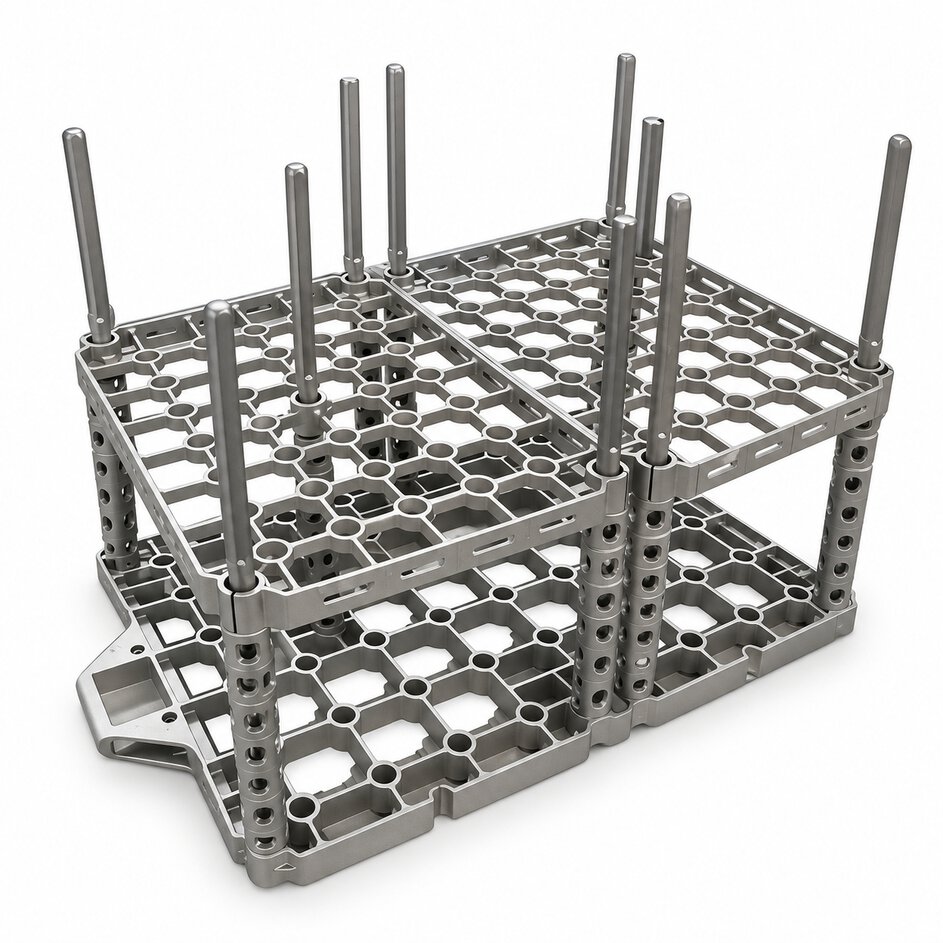

ECOOSUN can review drawings, worn samples, operating information, engineering requirements, and inspection requirements for custom heat-resistant cast parts. Begin at Heat Treatment Fixtures or use contact-us.

FAQ

What should a buyer confirm for a heat-resistant cast furnace part requirement?

Confirm the drawing or used sample, key dimensions and interfaces, furnace type and clearance, load, operating cycle, failure evidence and inspection requirements. Final acceptance criteria should be agreed for the specific project.

Can ECOOSUN review a custom heat-resistant cast furnace part requirement?

Yes. ECOOSUN can review a customer drawing or used sample and discuss casting, laboratory and inspection requirements for a custom furnace-component project. Suitability and final scope are confirmed from the supplied information.
