Heat treatment loading systems are easy to underestimate. A basket, tray or fixture may look like a simple steel component, but its design affects loading efficiency, part distortion, furnace throughput and maintenance cost. The right choice depends on the complete operating condition—not only the furnace temperature.
This guide explains how purchasing and engineering teams can compare heat treatment baskets, heat treatment trays and heat treatment fixtures before requesting a quotation.
Start with the furnace cycle
Before selecting an alloy or shape, record the actual cycle. Include the normal operating temperature, peak temperature, heating and cooling rate, holding time, atmosphere, and whether the load is continuously processed or handled in batches. Carburizing, annealing, hardening, tempering and vacuum heat treatment can expose the same component to very different oxidation, carburization and thermal-shock conditions.
A component that performs well in a batch furnace may distort prematurely in a continuous line because of repeated cycling and conveyor movement. This is why a supplier should review the complete duty cycle instead of quoting from temperature alone.
Basket, tray or fixture: which format fits the job?
Heat treatment baskets
Heat treatment baskets are useful when many small or irregular parts need to be loaded, transferred and unloaded as one batch. Key design points include mesh or bar spacing, drainage of quenching media, lifting points, nesting, and the relationship between basket weight and usable product weight.
Heat treatment trays
Heat treatment trays are often preferred for flat, delicate or small components that need even support. A well-designed tray helps prevent parts from touching the furnace floor and can improve circulation around the load. Tray stiffness, support spacing and thermal expansion allowance are especially important when the tray is long or repeatedly exposed to high temperature.

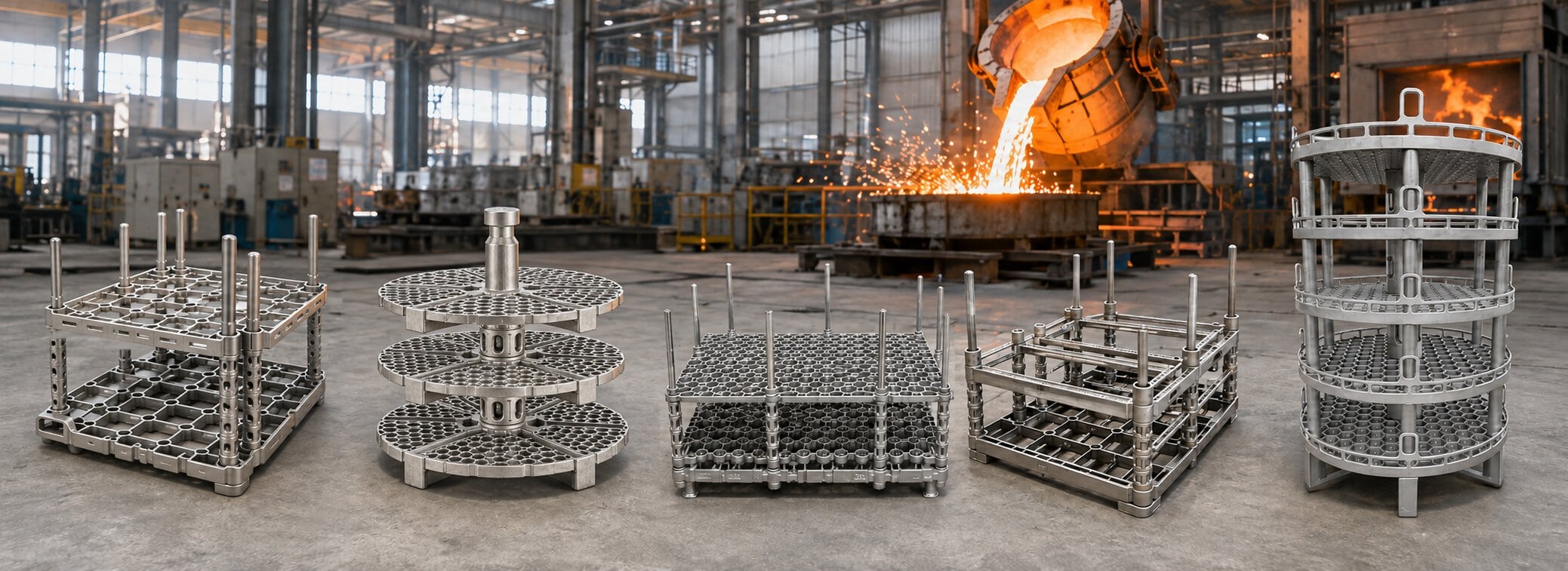

Heat treatment fixtures
Heat treatment fixtures are designed around a specific part geometry or process requirement. They may hold shafts, rings, gears, welded assemblies or thin sections in a controlled position. The fixture should restrain unwanted movement without creating stress concentrations or blocking heat transfer.
Material selection is a balance, not a single temperature number
Heat-resistant steel and high-temperature alloy selection should consider temperature, atmosphere, load, thermal cycling and expected service life together. Common reference materials may include 25Cr-20Ni, X15CrNiSi25-21, 25Cr-35Ni-Nb and HP40-type cast alloys, but the most suitable grade depends on the application.
For example, a basket used in a neutral atmosphere with moderate loading may require a different solution from a carburizing furnace fixture exposed to carbon potential, distortion risk and frequent quenching. The supplier should also consider weldability, casting geometry, machining allowance and replacement availability.
Five questions to ask before ordering
- What are the normal and peak operating temperatures?
- What furnace atmosphere and treatment process are used?
- What is the maximum working load, and where is the load concentrated?
- What are the component dimensions, support points and lifting requirements?
- What failure has occurred with the current basket, tray or fixture?
How to prepare an RFQ for a custom component
For a reliable quotation, send the component name, material preference, furnace type, operating temperature, atmosphere, overall dimensions, working load, quantity, drawings or clear photographs, and delivery country. If the current part is bending, cracking, scaling or wearing quickly, include photographs of the failed area and the number of cycles achieved.
ECOOSUN can review drawings and operating details for custom heat treatment baskets, trays and fixtures. To discuss a replacement or new design, send your RFQ with the application data and available drawings. A technical review before production can help reduce repeat failures and unnecessary material upgrades.
Final selection checklist
The best heat treatment loading component is the one that combines stable geometry, suitable alloy performance, practical handling and predictable replacement cost. Compare the complete operating condition, not just the lowest unit price. If the geometry, atmosphere or load is unusual, a drawing-based quotation is usually the safest starting point.
