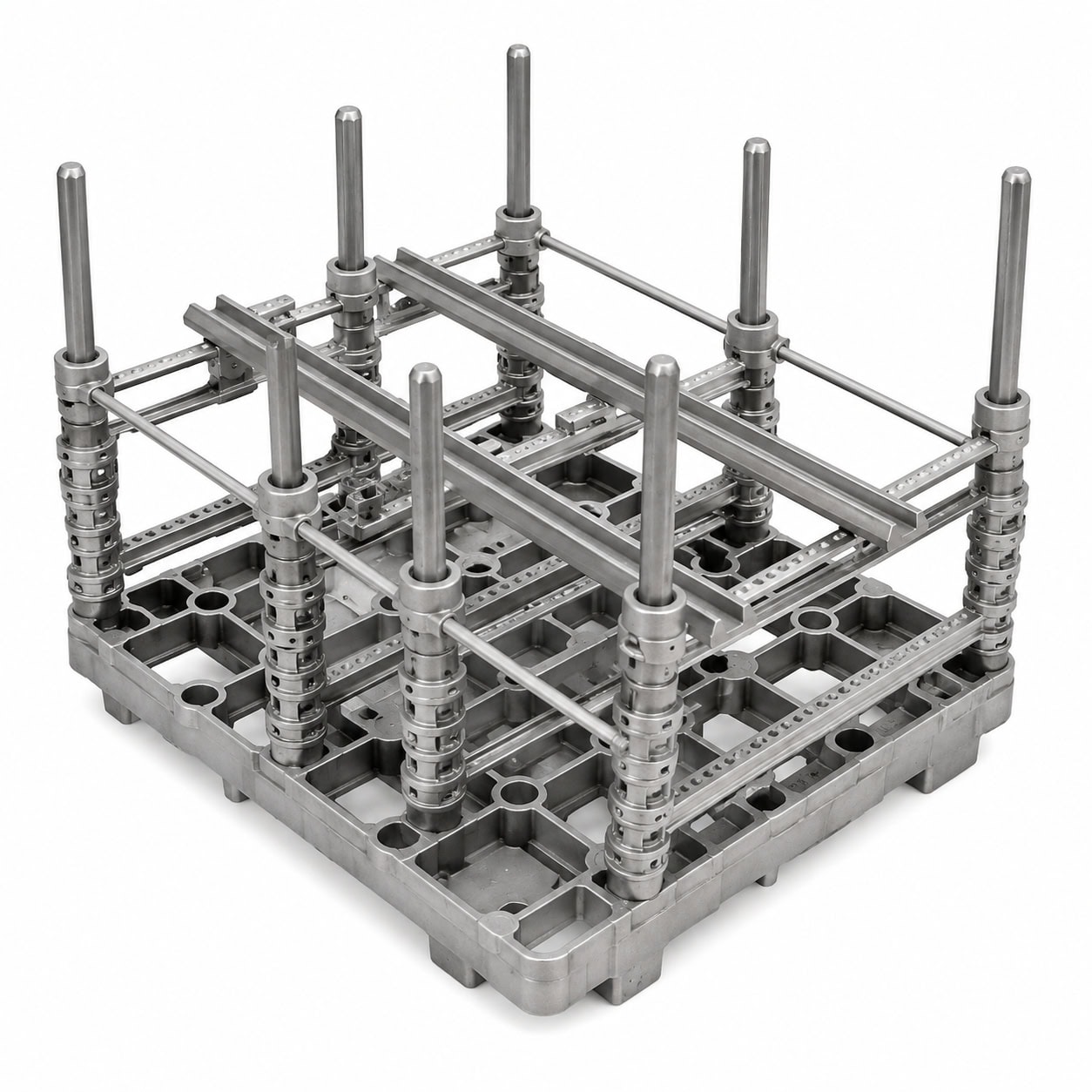

Heat Treatment Fixture Dimensional Acceptance Checklist

Direct answer

Accept a heat treatment fixture by checking the features that control workpiece location, support, release, and furnace fit. Use the approved drawing and named datums to measure locating points, support faces, critical clearances, lifting features, and the overall envelope. Record actual values, method, and deviations. A fixture can be within an overall size while still locating a workpiece incorrectly, so acceptance should focus on functional interfaces rather than one headline dimension.

Define datums and functional features

Before measuring, mark the fixture datum and the workpiece datum. Identify locating pins, seats, contact faces, support points, release openings, and furnace-side interfaces. If the drawing does not state which features are critical, agree them before inspection. Otherwise two parties may measure different features and still use the word “accepted.”

Inspect fit and release

Check the workpiece or an approved inspection reference for seating, locating, and removal. Look for rocking, unexpected contact, binding, or interference with lifting equipment. Record whether the fixture was inspected empty or with the reference workpiece. A fit-up result should identify the configuration and the direction of loading.

Record visible condition

Photograph sharp edges, cracks, repair areas, casting irregularities, damaged contact faces, and blocked release paths. Keep these observations separate from internal-quality or service-life conclusions. If a special inspection method is required, put it in the agreed acceptance scope and identify the resulting record.

How ECOOSUN can help

ECOOSUN can review the workpiece and fixture drawings, worn samples, engineering requirements, and inspection requirements. Begin at Heat Treatment Fixtures or send the acceptance criteria through contact-us.

RFQ information checklist

For a useful first review, send the drawing or used sample, key dimensions, furnace type, load, operating cycle, visible failure evidence and any required inspection points. Final material and acceptance decisions are confirmed for the specific project.

Buyer decision point

FAQ

What should be confirmed before accepting a heat treatment fixture?

Confirm the approved drawing, locating points, support faces, clearances, release movement, operating cycle and inspection requirements. The final acceptance criteria should be agreed for the specific furnace and workpiece.
