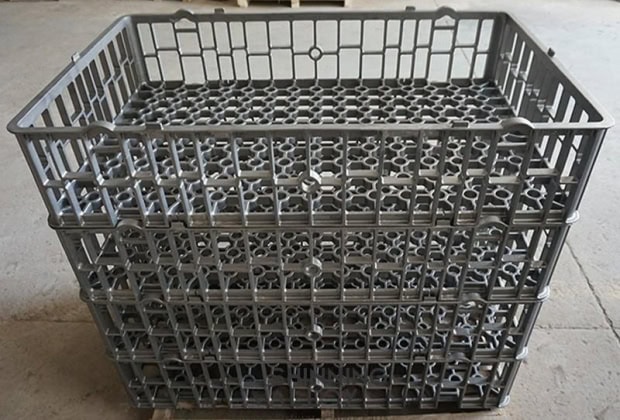

How to Inspect a Heat Treatment Basket Before Replacement

Direct answer

Before replacing a heat treatment basket, preserve its condition and record the installation context. Photograph all sides, mark the lifting and furnace directions, measure stable reference features, and map deformation, wear, cracks, and contact marks. Then compare the sample with the current drawing or an earlier record. The aim is to identify the intended design and the service damage separately, so the replacement does not reproduce a distorted or incorrectly supported basket.

Preserve the evidence first

Do not cut, straighten, weld, or aggressively clean the basket before taking photographs and notes. Photograph it installed if safe, then photograph the empty part from top, bottom, side, and lifting directions. Place a scale or known dimension in the frame where possible. Mark the drive or operator side, the furnace entry direction, and the location of each defect.

Measure from meaningful references

Measure the overall envelope, supports, lifting features, key openings, and contact points. Identify which measurements are taken from undamaged areas. If the basket is warped, record the direction and maximum deviation rather than treating the warped outline as nominal. A sketch with datums and arrows is often the fastest way to explain the condition.

Record how the basket was used

Add the workpiece arrangement, approximate load, loading method, support locations, furnace position, and handling history. Note whether the basket was overloaded, stacked differently, or modified. These details are not a blame exercise; they help the supplier decide whether a direct replacement or a design review is appropriate.

Send a replacement package

Include the drawing or sample, photo map, measurements, failure history, furnace interface, load arrangement, and required inspection records. ECOOSUN can review this information for a custom basket through Heat Treatment Baskets or contact-us.

RFQ information checklist

For a useful first review, send the drawing or used sample, key dimensions, furnace type, load, operating cycle, visible failure evidence and any required inspection points. Final material and acceptance decisions are confirmed for the specific project.

Buyer decision point

FAQ

What should a buyer confirm for a heat treatment basket requirement?

Confirm the drawing or used sample, key dimensions and interfaces, furnace type and clearance, load, operating cycle, failure evidence and inspection requirements. Final acceptance criteria should be agreed for the specific project.

Can ECOOSUN review a custom heat treatment basket requirement?

Yes. ECOOSUN can review a customer drawing or used sample and discuss casting, laboratory and inspection requirements for a custom furnace-component project. Suitability and final scope are confirmed from the supplied information.
